Description

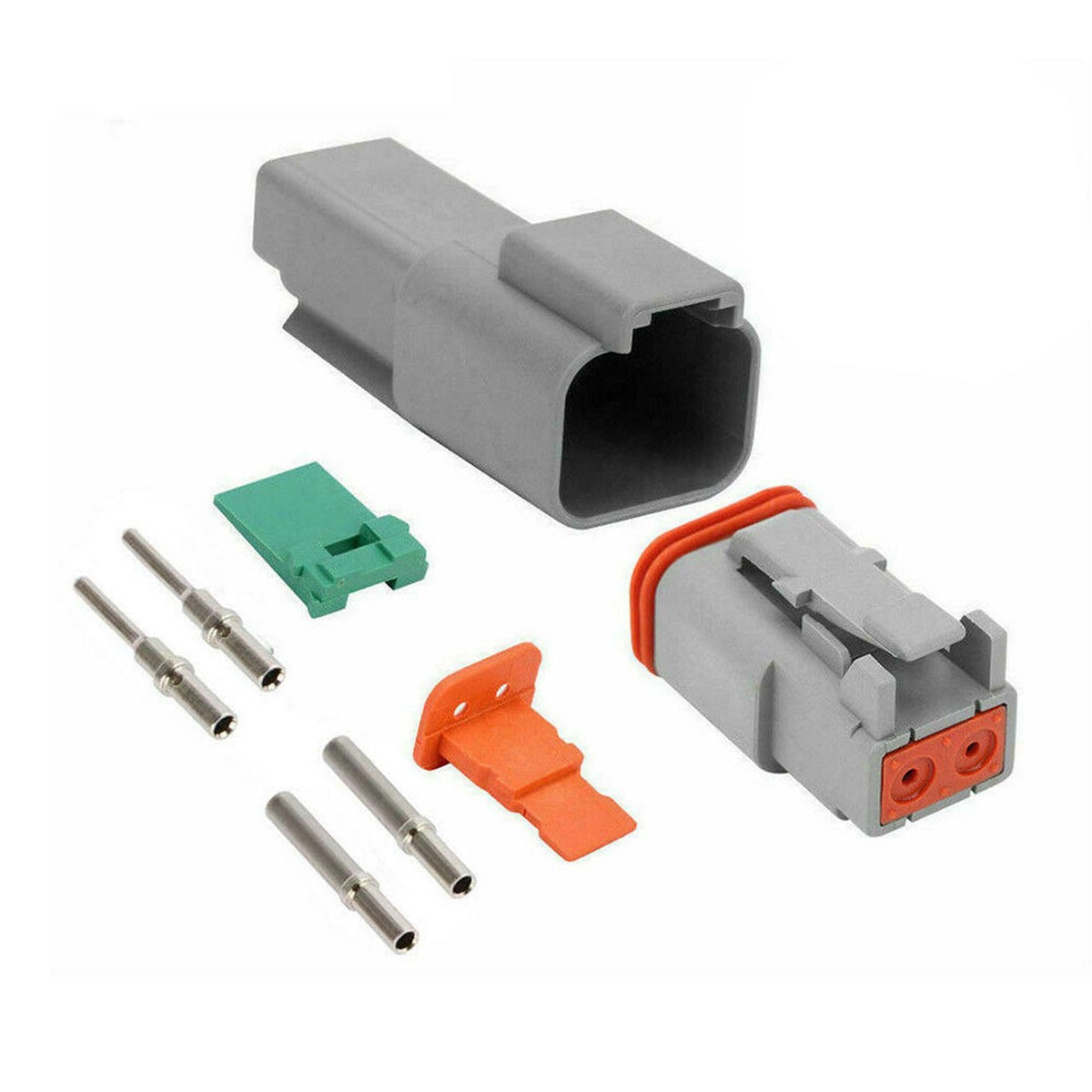

The Deutsch DT Series of environmentally-sealed connectors is specifically designed for applications where even a small degradation in the connection may be critical. The housings are molded from thermoplastic material, and silicone seals allow the connector to withstand extremes of temperature (-55C to +125C).

Deutsch DT connectors are suitable for automotive (chassis, cabin, engine bay, drivetrain, interior, aftermarket accessories, caravans, 4X4), marine, harsh environment, and heavy equipment applications where reliable connections need to be made quickly, easily, and at a low cost.

Features
Strong thermoplastic housing
High-quality silicone seals
Accepts size 16 contacts
14-20 AWG cable
Operating temperature -55C to +125C
Integrated latch for mating
Wedge locks to assure aligned contacts and retention

Specifications
Grommet material: Silicone rubber
Receptacle seal material: Silicone rubber
Housing material: Thermoplastic
Insert retainer material: Thermoplastic
Wedge locks material: Thermoplastic
Weight: 287g
Operating temperature: -55C to +125C

Package Includes
14X DT 2-way Male Receptacle with wedge lock
14X DT 2-way Female Receptacle with wedge lock
Male contacts
Female contacts
4X DT Mounting Clips
1X 6 Compartment Organizer
(Total: 117 Pcs)
