Description

1% Accuracy Measurement: Shunt-type monitor design provides much more accurate real-time voltage and current draw measurement.

Protect the batteries: With High and low capacity alarm functions, our battery monitor with shunt will alarm, and backlight and voltage value will flash simultaneously to protect the batteries from getting over-discharged.

Fit for all battery: Compatible with various battery types, including Lead Acid (AGM, GEL), Lithium Iron Phosphate, Lithium-ion, Nickel-metal hybrid.

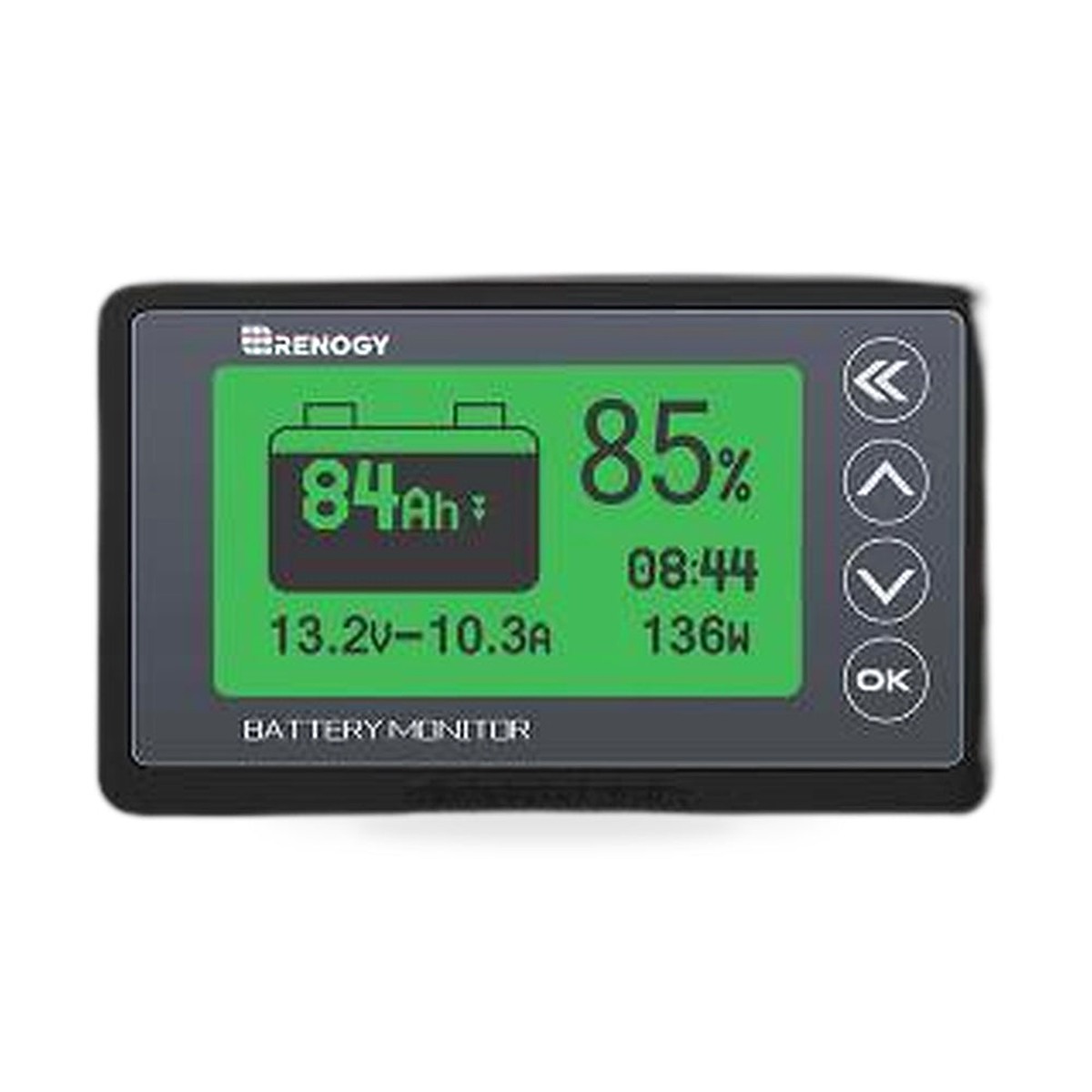

Easy to read: Displays multiple electronic parameters, including Voltage, Current, Consumed Power, Battery Capacity, and battery degradation rate with a customized brightness high-definition Backlight Display.

Easy to Install: Transparent shunt holder makes it easier to mount the shunt. And the 20ft Shielded cable allows you to monitor the battery status from a distance.

Specifications

Brand: MAXCOOL

Type: Battery Monitor Kit

Warranty: 1 year

Current: 350A (MAX500A)

Current Accuracy: 1%

Capacity Accuracy: 1%

Temperature range: 0-35C

Shielded Wire Length: 6m

Battery Test Type: Lithium, AGM, Flooded, Gel, Lead-Acid

Working Voltage: 10-120V

Working Dissipation: 10-15mA

Standby Dissipation: 1-2mA

Voltage Accuracy: 1%

Package include:

1 x Battery Monitor

2 x Copper nose

1 x Acrylic base for diverter

1 x 6m shielded wire

1 x 350AMAX 500A shunt

1 x 2m 20AWG B+wire

Note:

*Sourced From Professional Aftermarket Manufacturer, QUALITY GUARANTEED.*
