Compatible with:
Suitable for Yamaha YFZ450 2004-2009
Suitable for Yamaha YFZ450 2012-2013
Suitable for Yamaha YFZ450LE Limited Edition 2004
Suitable for Yamaha YFZ450SE Special Edition 2005
Suitable for Yamaha YFZ450SE Special Edition 2006
Suitable for Yamaha YFZ450SE Special Edition 2007
Suitable for Yamaha YFZ450SE2 Special Edition II 2007
Suitable for Yamaha YFZ450V Bill Balance Edition YFZ450BB 2006-2007
Suitable for Yamaha YFZ450SP Special Edition 2008
Suitable for Yamaha YFZ450SP2 Special Edition II 2008
Suitable for Yamaha YFZ450XSE Special Edition 2011
Suitable for Yamaha YFZ450W Custom Graphics 2012
Suitable for Yamaha YFZ450W Custom Graphics 2013

Note:
Suitable for 03-05 YZ450F & 03-06 WR450F off-road, only the cylinder and gasket will fit, piston kit will NOT fit, cause our wristpin is 20mm, fits YFZ450, and YZ450F & WR450F required 18mm wristpin, you can use your original piston kit, please do not purchase if you can not accept it.
Suitable for Yamaha YZ450F 2003-2005 (Only cylinder and gasket kit will fit.)
Suitable for Yamaha WR450F 2003-2006 (Only cylinder and gasket kit will fit.)

Specifications

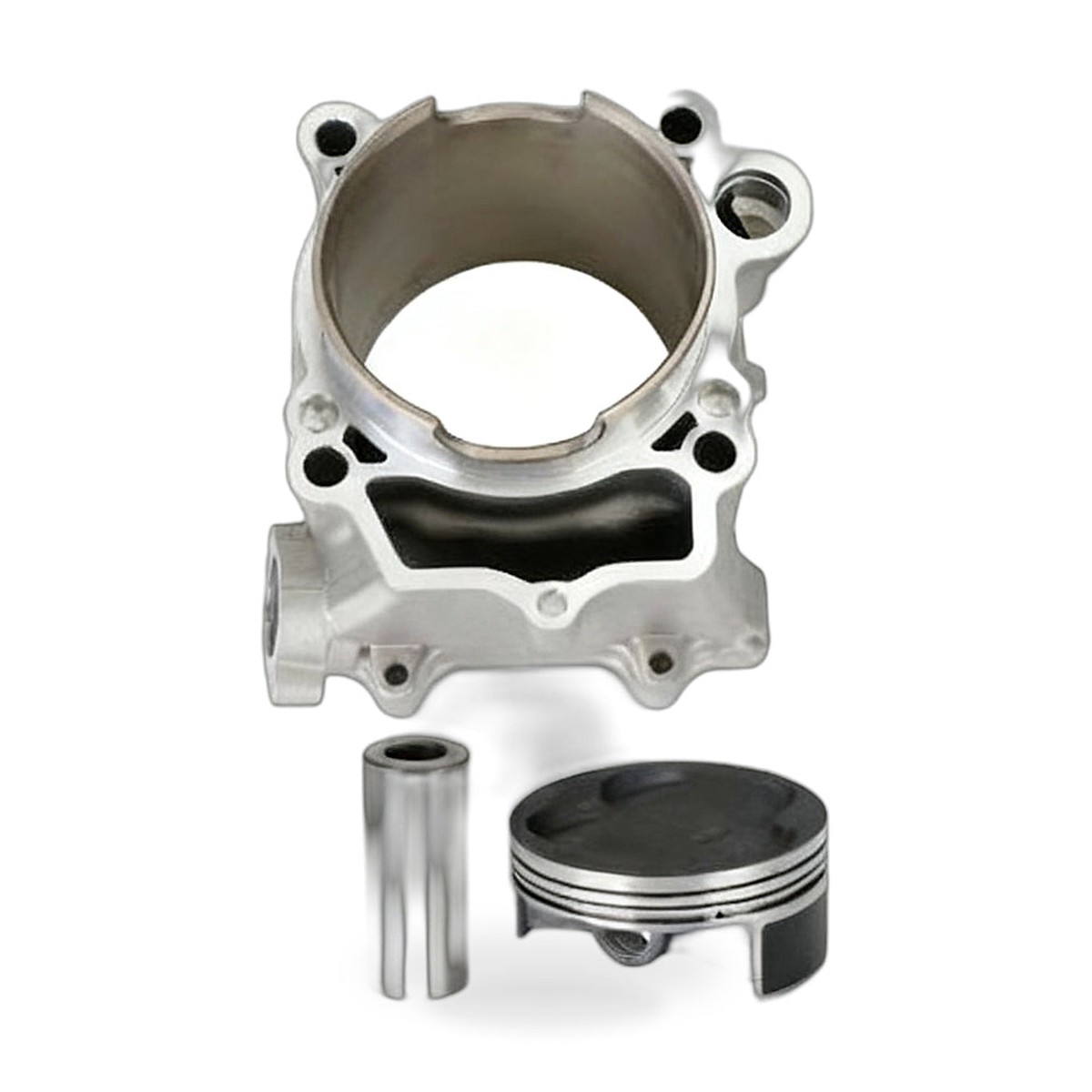

Type: Cylinder Piston Gaskets Kit
Displacement: 450cc
Bore Size: 95mm
Stroke: 63.40mm
Pin Length: 48mm
Pin Diameter: 20mm

Part Number:
For Cylinder: 5TA-11311-12-00
For Cylinder Base Gasket: 5TA-11351-00-00
For Cylinder Head Gasket: 5TA-11181-00-00
For Chain Tensioner Gasket: 4FM-12213-00-00
For Piston(Std): 5TG-11631-00-00, 99999-03528-00
For Pin, piston: 5TG-11633-00-00, 99999-03528-00
For Piston Ring Set: 5TG-11603-00-00
For Circlip, piston: 99009-20500

Package Include:
1x Cylinder
1x Piston(STD)
1x Piston Ring Set
1x 20mm Wristpin
2x Circlips
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket

Compatible Vehicles
