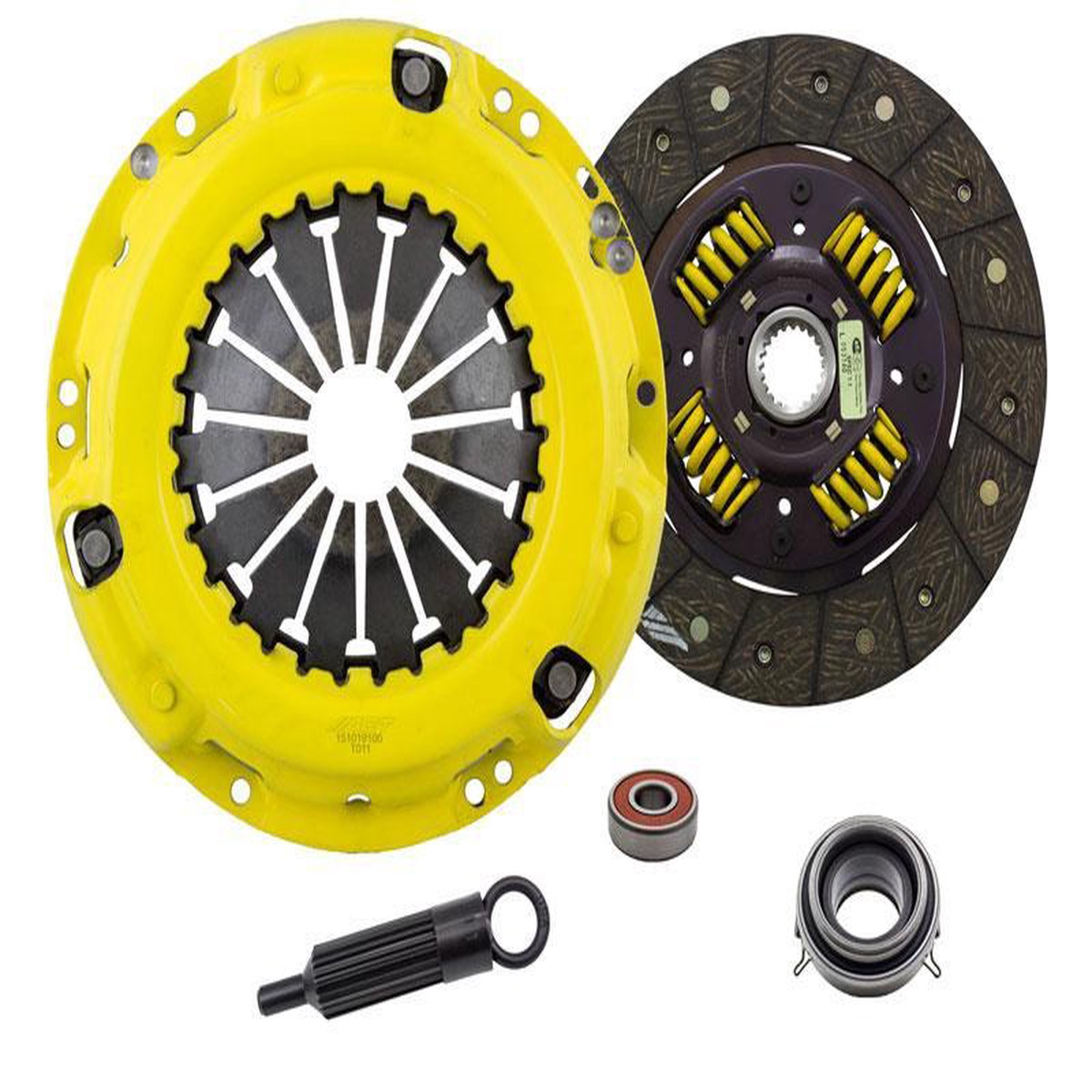

HD/Perf Street Sprung Clutch Kit

T42-HDSS kit features ACT’s most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Features

• Torque Capacity (ft/lbs.): 275
• Torque Capacity Over OE: 48%
• Disc Type: Street Disc
• Spline Count: 21
• Spline Size (in.): 1-1/8
• Disc Diameter (in.): 8.8
• Disc Diameter (mm.): 224
• Pressure Plate Type: Heavy Duty

Applications

• 1989-1993 Toyota 4Runner
• 1989-1995 Toyota Pickup 2WD

What’s In The Box?

• 3000603
• AT11
• PB1004
• RB455
• T011

Warranty

• One (1) Year from Retail Purchase

Downloads

• Installation Instructions
