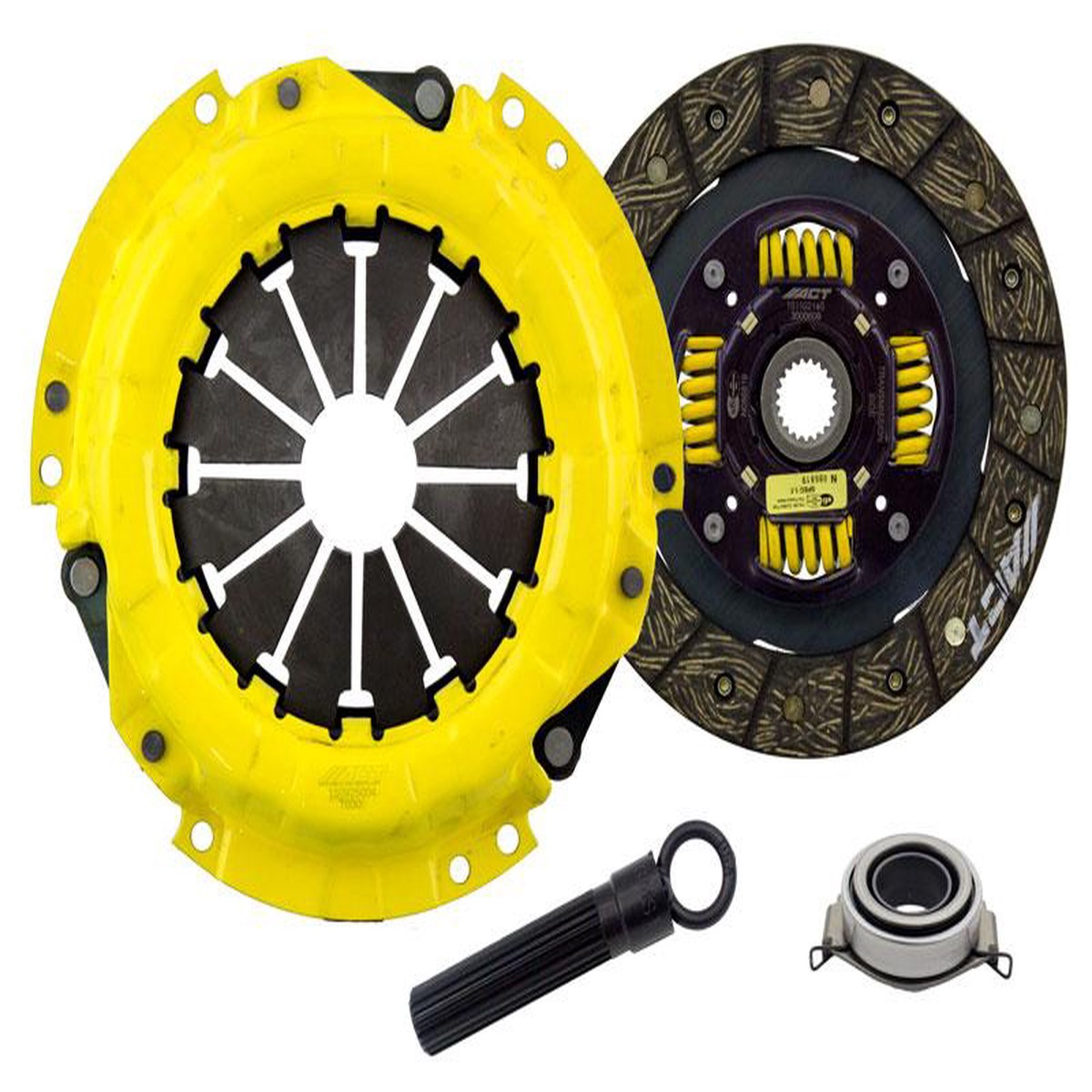

ACT HD/Perf Street Sprung Kit

SC1-HDSS kit features ACT’s most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

Features

• Torque Capacity (ft/lbs.): 240
• Torque Capacity Over OE: 0.32
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.3
• Clutch Disc Diameter (mm): 212
• Disc Material: Organic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 0.9375
• Product Weight (lbs.): 11.8

Applications

• 2008-2014 Scion xD

What’s In The Box?

• Clutch Friction Disc (3000609)
• Clutch Release Bearing (RB124)
• Clutch Pressure Plate (T030)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
