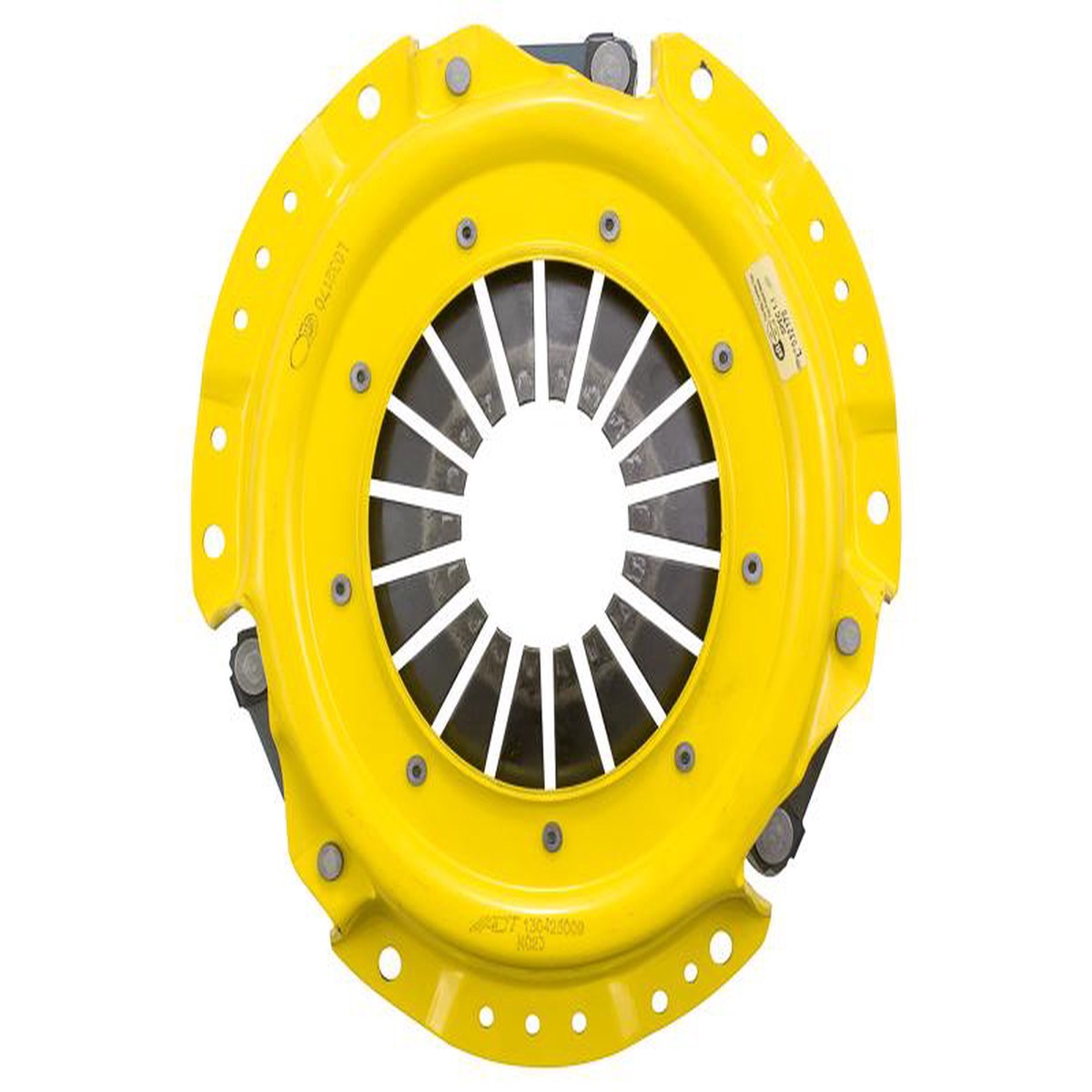

ACT P/PL Heavy Duty

N023 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.

Features

• Product Weight (lbs.): 10.5
• SFI: 1.1
• Type: Heavy Duty
• Diameter (in.): 8.8
• Diameter (mm): 224

Applications

• 1975-1979 Nissan 620
• 1990-1990 Nissan Axxess
• 1990-1992 Nissan Stanza
• 1975-1978 Nissan 280Z
• 1979-1983 Nissan 280ZX
• 1981-1984 Nissan Maxima
• 1989-1998 Nissan 240SX
• 1980-1983 Nissan 720
• 1980-1986 Nissan 720

What’s In The Box?

• ACT P/PL Heavy Duty Pressure Plate

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
