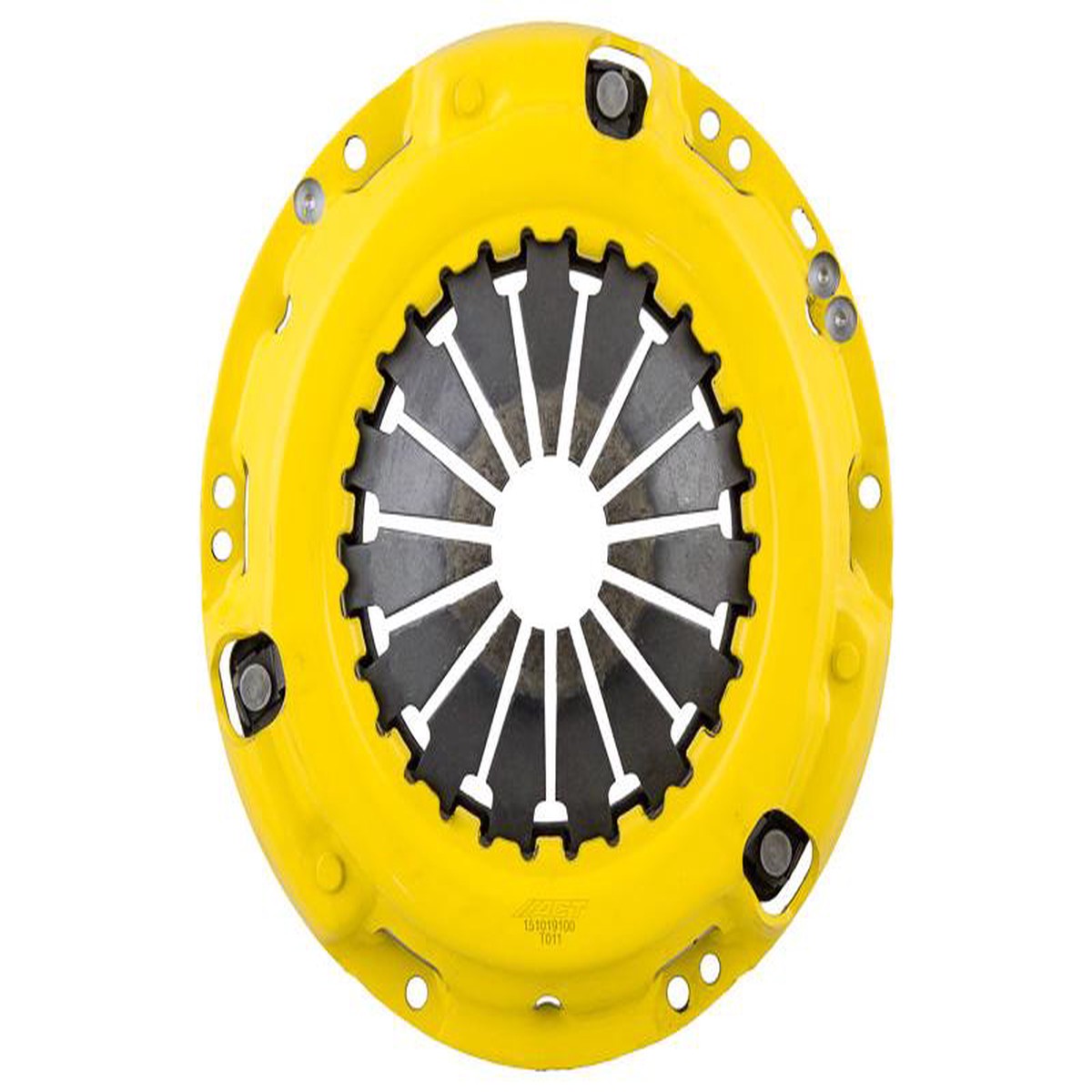

ACT P/PL Heavy Duty

T011 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.

Features

• Product Weight (lbs.): 10.6
• Type: Heavy Duty
• Diameter (in.): 8.8
• Diameter (mm): 224

Applications

• 1967-1972 Toyota Crown
• 1980-1982 Toyota Corolla
• 1984-1993 Toyota 4Runner
• 1972-1985 Toyota Celica
• 1978-1995 Toyota Pickup
• 1971-1981 Toyota Corona
• 1972-1974 Toyota Mark II
• 1986-1989 Toyota Van

What’s In The Box?

• ACT P/PL Heavy Duty Pressure Plate

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
