ACT Sport/Race Sprung 4 Pad Kit

TS6-SPG4 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

• Product Weight (lbs.): 12
• Torque Capacity (ft/lbs.): 285
• Torque Capacity Over OE: 0.59
• Pressure Plate Type: Sport
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.3
• Clutch Disc Diameter (mm): 212
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 0.9375

Applications

• 2004-2006 Scion xA
• 2004-2006 Scion xB
• 2000-2005 Toyota Echo
• 2007-2013 Toyota Yaris

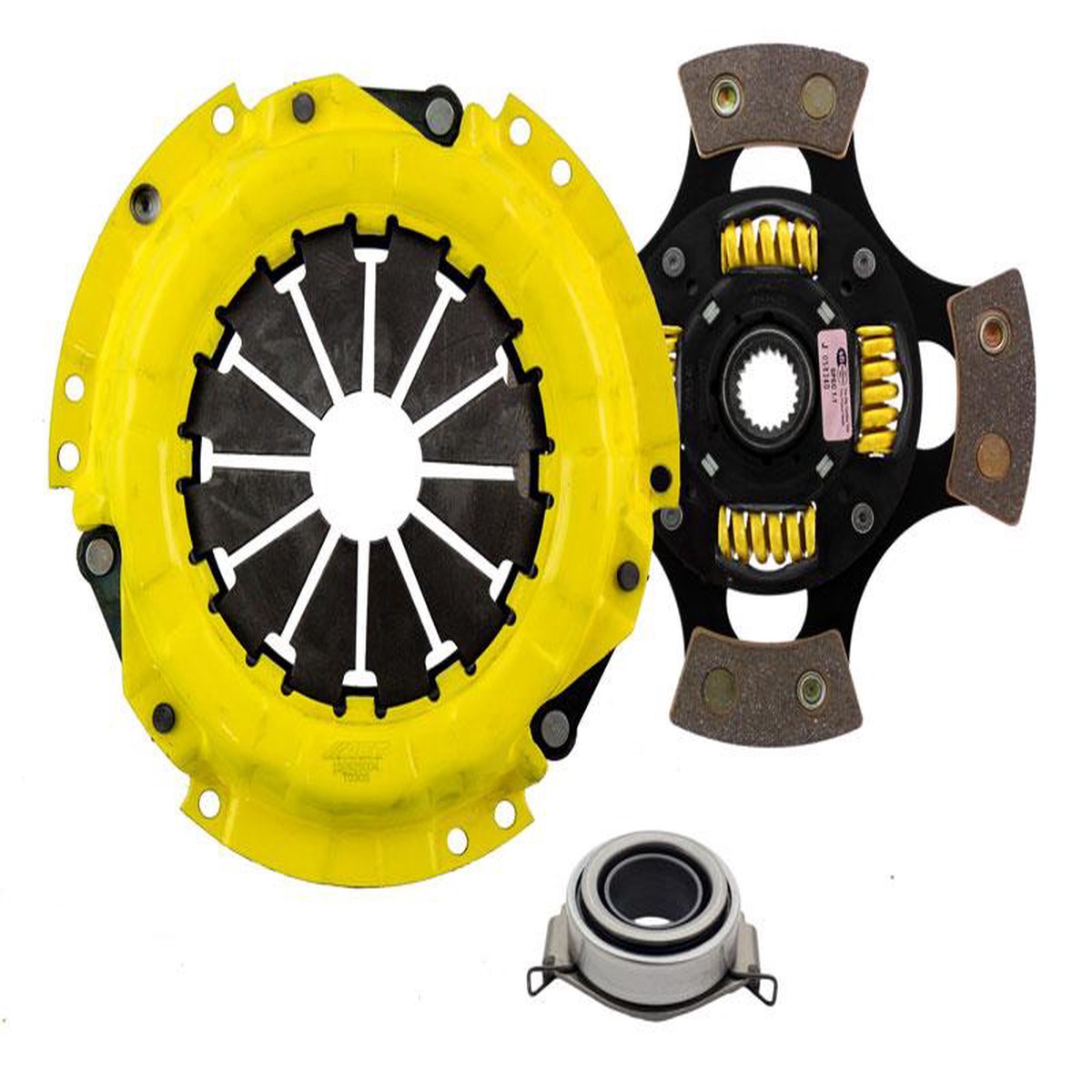

What’s In The Box?

• Clutch Friction Disc (4212103)
• Clutch Release Bearing (RB124)
• Clutch Pressure Plate (T030S)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
