Stage 4 Clutch Kit (1MD) for Honda D15 / D16 SOHC by Action Clutch

The 1MD Stage 4 Kit uses an extremely durable, High Performance MIBA Unsprung Ceramic Disc. This kit features a single diaphragm heavy-duty pressure plate with reinforced drive straps for increased durability. This kit has an on and off engagement and is recommended for strictly race purposes. It is available in a 4 and 6 MIBA Ceramic puck configuration with the 4 puck being the more aggressive of the two. This MIBA Unsprung Ceramic kit is engineered for low/mild horsepower vehicles. Stage 4 MIBA Unsprung Ceramic kit creates a quick engagement as well as some clutch chatter, which should be fairly minimal once proper break-in is completed.

Features

• MIBA Friction Ceramic Material Pads
• Reinforced heavy duty drive straps
• 4 stage Heat treated diaphragm spring
• Estimated Torque Holding Capacity: 295ft-lbs

Benefits

• MIBA Friction Ceramic Material Pads
• Rigid Hub Type
• High Grade Rivets

Break-In Requirements: 500 street miles / Keep RPMs under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.

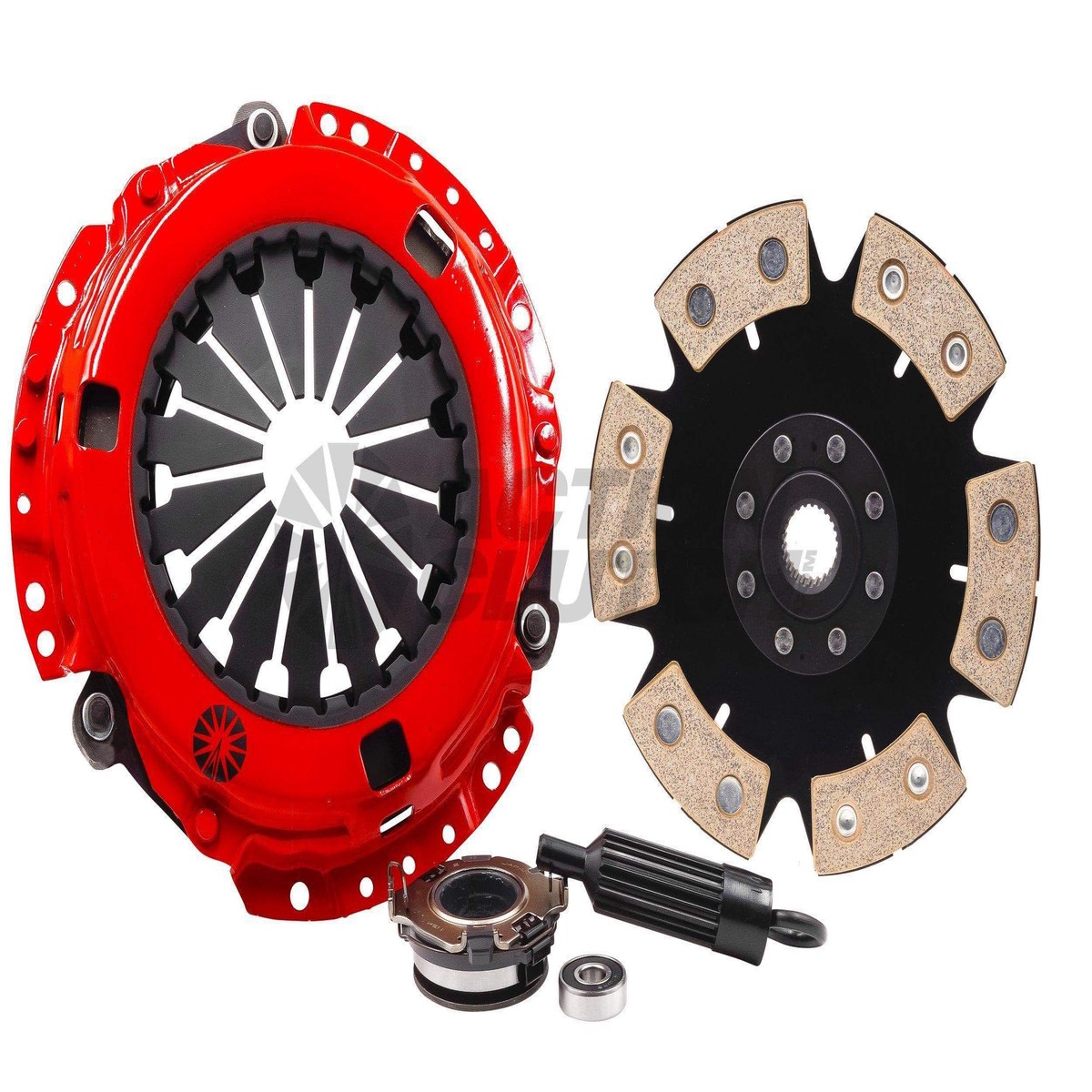

Important: Image is for reference only; actual product may vary. Please refer to “What’s In The Box?” for more information

Applications

• 2001-2005 Honda Civic (D17A2)
• 1990-1991 Honda CRX (D15/D16)
• 1990-1991 Honda Civic (D15/D16)
• 1992-2001 Honda Civic (D15/D16)
• 1993-1997 Honda Civic Del Sol (D15/D16)

What’s In The Box?

• 1 – (1MD) Stage 4 Clutch Disc
• 1 – Single Diaphragm HD Pressure Plate
• 1 – Release Bearing
• 1 – Pilot Bearing / Bushing (when applicable)
• 1 – Clutch Alignment Tool
• 1 – Information Sheet

Warranty

• Limited Manufacturers Warranty
