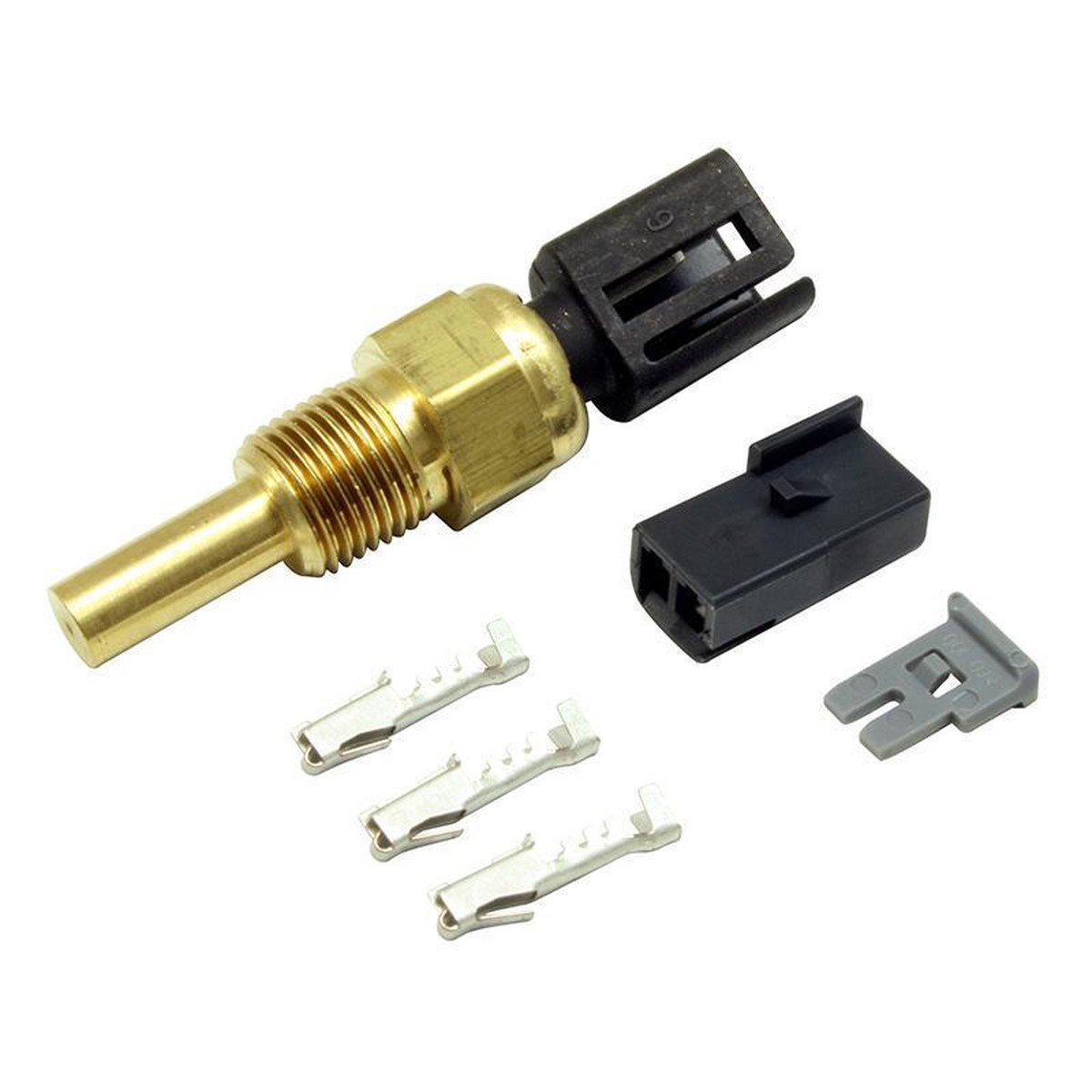

1/8″ NPT Water/Oil Temperature Sensor Kit by AEM

Temperature Sensor with 1/8″ NPT Male Thread, Plug, Pins & Pin Lock

Features

• Accuracy: < 2C / 3.6
• Operating Temp: -40C to 200C / -40F to 392F
• Dissipation Constant: 12 mW/C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test medium: silicone oil.
• Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil.
• Sensor Body Material: Brass
• Thread: 1/8″-27 PTF
• Hex Size: 1/2″
• Installation Torque: 13.5Nm / 10 ft-lbs
• Weight: 12.2g
• Elec. Termination: Connector. Includes mating connector, pins & pin loc

Applications

• Universal

What’s In The Box?

• 1 – Water/Oil Temperature Sensor
• Connector, Pins & Pin Lock

References

• Data Sheet

Warranty

• Manufacturer Standard Warranty
