AEM Stainless Steel MAP/PSIa Sensor 150PSI

AEM offers high quality PSIg sensors in 100, 150, 500, 1,000, and 2,000. Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 psig. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc.

Use a SS Pressure Sensor where you need exact details of the pressure. Example: MAP Sensor information for the ECU Calibration/crucial information for the ECU.

Features

• Accuracy: +/- 0.5% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
• Operating Temp: -40C to 105C / -40F to 221F
• Burst Pressure: 1500PSI
• Response Time: < 1ms
• Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Sensor Body: Stainless Steel
• Wetted Materials: 304L & 316L Stainless Steel
• Thread: 1/8″ NPT Male Thread
• Weight: < 85 Grams
• Supply Current:
• Output: .5 to 4.5Vdc Linear
• Elec. Termination: Integral weatherproof connector

Benefits

• Stainless-steel sensors accurate to within 1% of full scale (pressure sensors)
• High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)

Applications

• Universal

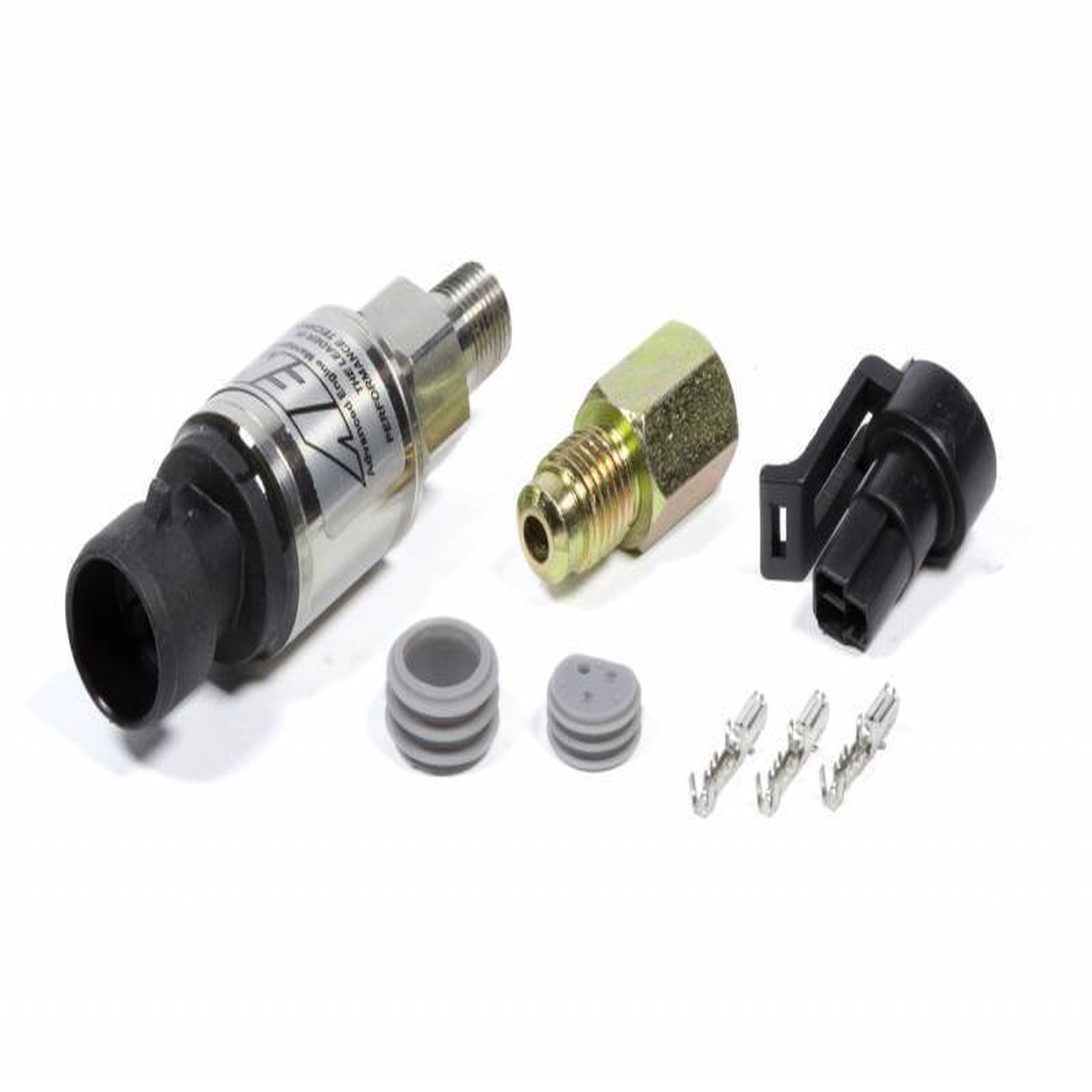

What’s In The Box?

• 150 PSIg Stainless Sensor
• Connector
• Pins
• Pin Lock
• 1/8″ NPT to -4 Adapter

References

• Instructions
• Sensor Data Sheet

Warranty

• Manufacturer Standard Warranty
