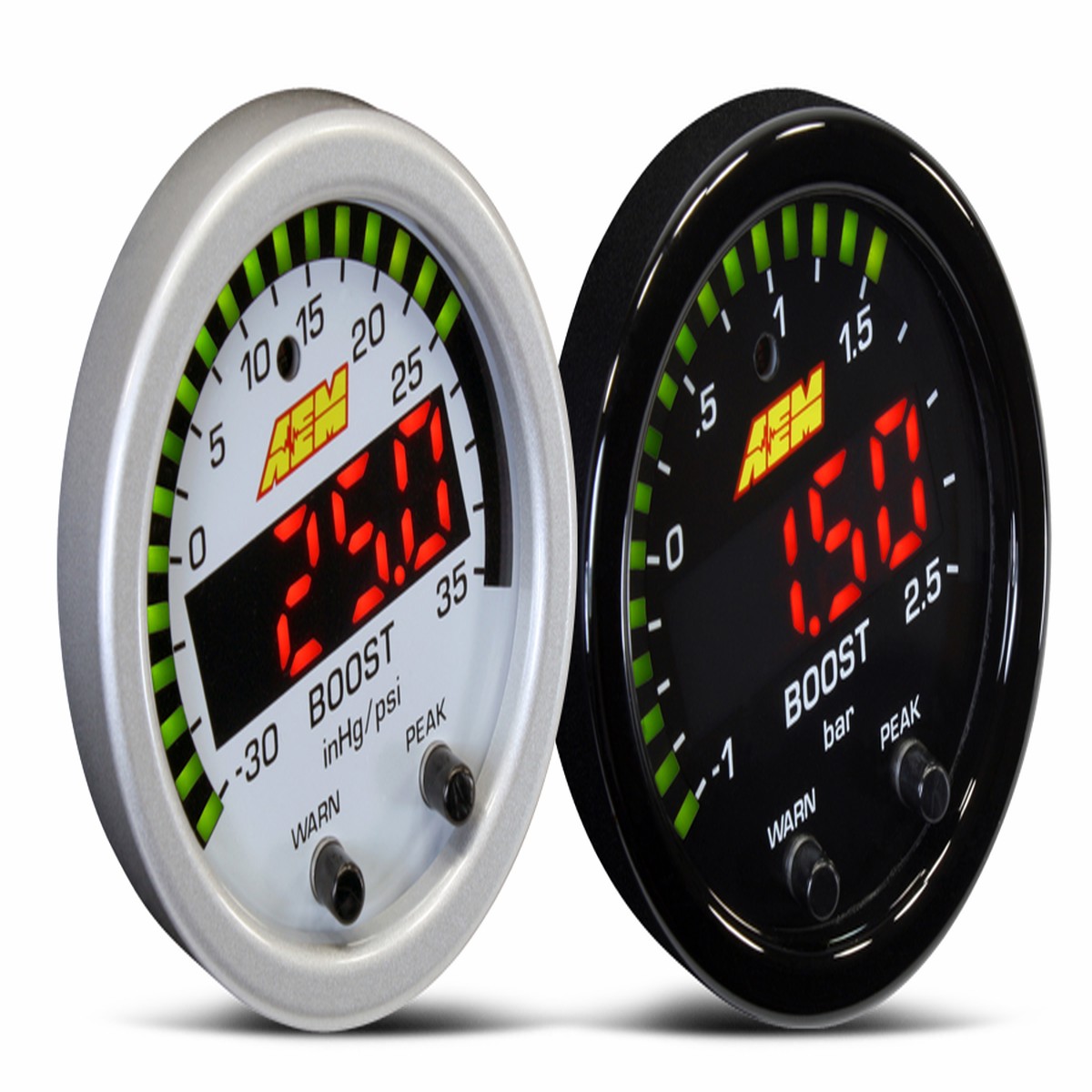

X-Series 35PSI / 2.5BAR Boost Display Gauge 30-0306

AEM’s 30-0306 X-Series -30in/Hg~35PSI / 2~2.5BAR Digital Boost Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 35 PSI or 2.5 BAR in their high performance vehicle.

EASIER TO READ
Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED needle lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.

EASIER TO MOUNT
Despite the larger display, X-Series Gauges are contained in a standard 22/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825″, with a cup depth of only 0.200″. This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.

SMARTER INTERFACE
X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ2 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

AEM 30-0306 Features

• 22/16th (52mm) gauge diameter for easy mounting in gauge pods
• Slim 0.825″ overall gauge depth and 0.200″ cup depth mount them virtually anywhere!
• Programmable center LED is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• User selectable standard or metric display ( -30in/Hg~35PSI / 2~2.5BAR)
• Peak/Recall via gauge face buttons
• User selectable threshold warnings

Benefits

• Optional silver bezel and white faceplate accessory kit available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto-dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection

Applications

• Universal Application

What’s in the Box?

• Gauge
• Black Bezel
• Reversible Black Face (PSI / BAR)
• Wiring
• Hose
• Installation Hardware and Accessories

Warranty

• AEM Limited Warranty
