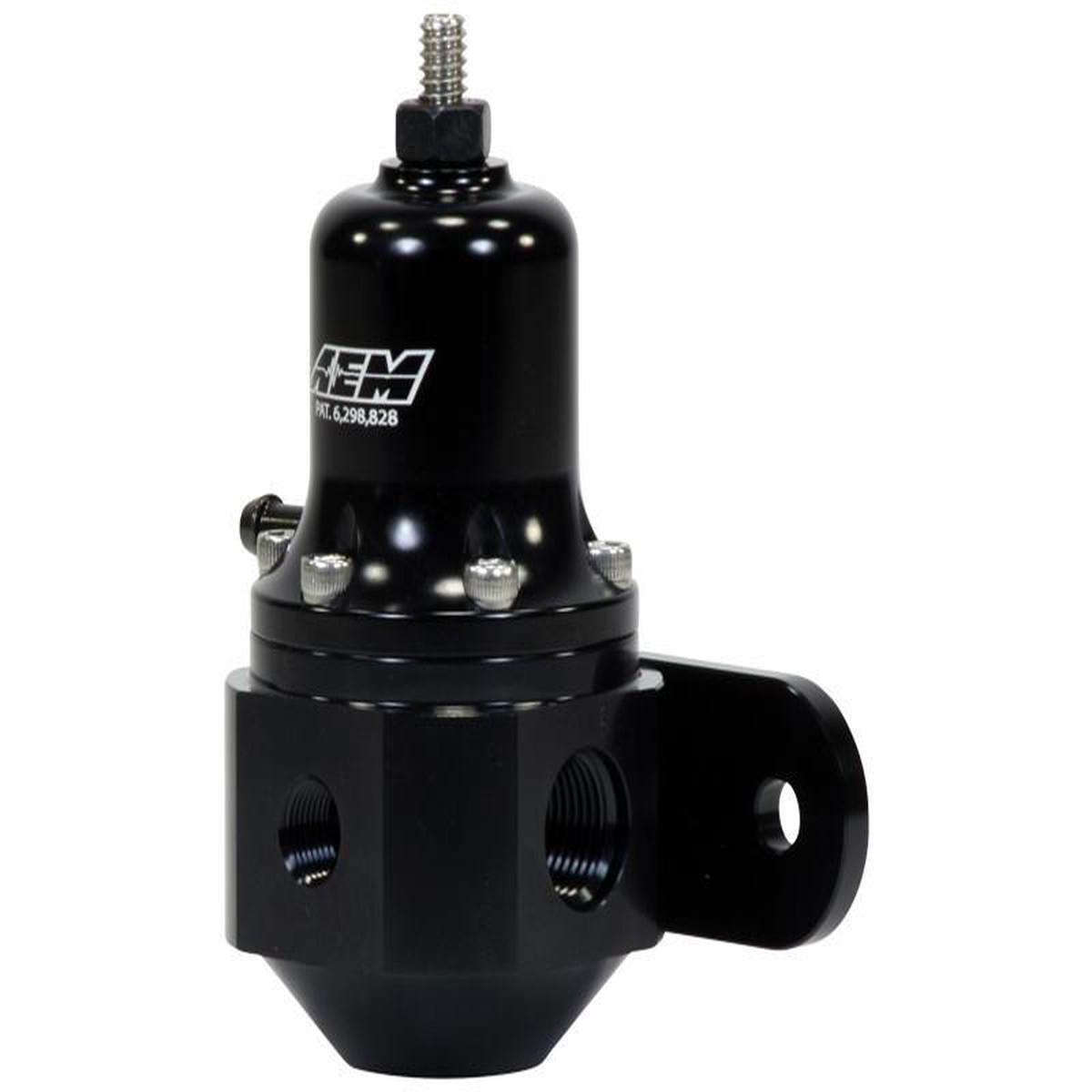

High Capacity Universal Adjustable FPR by AEM

AEM’s High Cap Universal Adjustable Fuel Pressure Regulator (PN 25-305BK) is the perfect solution for racers who need reliable fuel pressure in high-boost vehicles and racecars that require a large volume of fuel delivery. A longer spring provides for a wider range of adjustment (from 40 to 130 PSI). An easy-to-adjust set screw stands up to repeated adjustments.

A single large return orifice is designed to handle high rate flow pumps. The regulator has a 1:1 rising pressure rate for boosted applications, and it is alcohol fuel and race fuel compatible. The High Cap Universal FPR is tapped to accept a 9/16-18 O-Ring sealed fittings for inlet and return, and includes a 1/8 NPT port for a fuel pressure gauge or pressure sensor pick up.

Features

• Longer spring for wider range of adjustment (40 130 PSI)
• Single large return orifice accommodates very high flow rate pumps
• Boost dependent rising fuel pressure rate (1:1)
• Three 9/16″-18 ORB O-ring style inlet ports (2 inlet, 1 return)
• Easy to use adjustment screw
• Integrated 1/8″ NPT gauge port
• 5mm (3/16″) vacuum hose
• Alcohol fuel and race gas compatible
• CNC-machined from 6061-T6 billet aluminum

Applications

• Universal

What’s In The Box?

• 1 – AEM High Cap FPR

References

• Instruction Manual

Warranty

• Manufacturer’s Warranty
