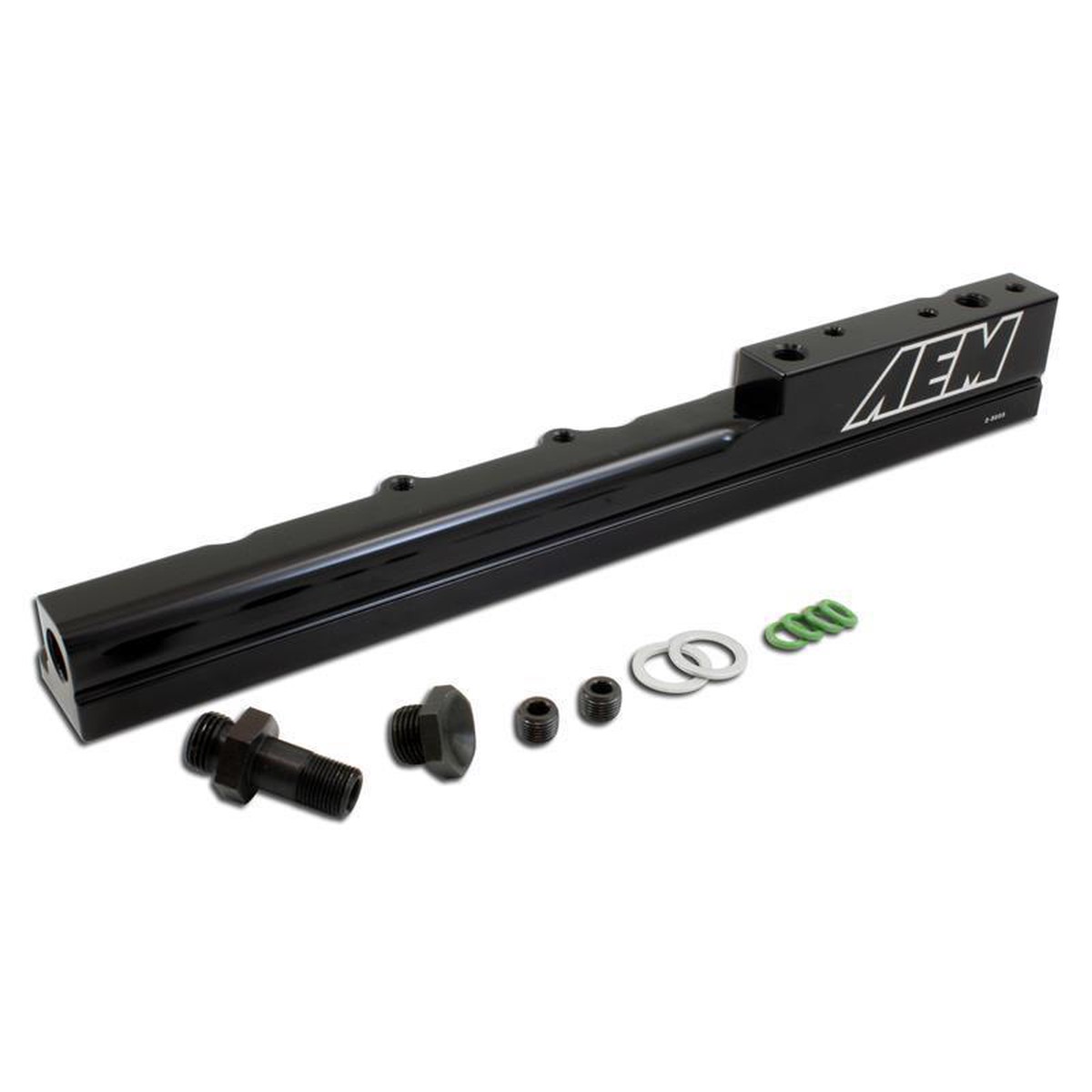

94-97 Honda Civic Del Sol 1.6L / 99-00 Civic Si 1.6L High Volume Fuel Rail by AEM

AEM High Volume fuel rails feature a 1/2-inch fuel bore to support fuel flow for applications up to 1,000 horsepower. This large bore also dampens backpressure pulses created by larger injectors and works perfectly with stock injector sizes.

An additional 1/8th NPT port is included to accommodate a nitrous set up or fuel pressure gauge. A custom fuel line fitting is included for the factory fuel line, and in most cases the ends of each rail are pre tapped to accept -6 AN or 9/16×18 fittings for users who want to use custom fuel lines.

Features

• Supports fuel flow up to 1,000 horsepower
• No additional parts required for installation – installs with factory fuel line using supplied fitting
• Pre-tapped for -6 AN or 9/16″x 18 fittings
• Specifically engineered for each application
• Works with factory fuel line or custom fuel lines
• 1/2 inch bore dampens backpressure pulses from larger fuel injectors
• 1/8 NPT port included for nitrous pick up or fuel pressure gauge
• Comprehensive installation instructions, hardware, fittings and injector O-rings included
• CNC Machined from billet aluminum
• Black anodizing with laser engraving
• Manufactured and assembled in the USA

Applications

• 1994 – 1997 Honda Civic Del Sol 1.6L
• 1999 – 2000 Honda Civic Si 1.6L
• Honda B16A2 / B16A3

What’s In The Box?

• 1 – High Volume Fuel Rail
• Hardware, Fittings & O-Rings
• Installation Instructions

Warranty

• Manufacturer Standard Warranty
