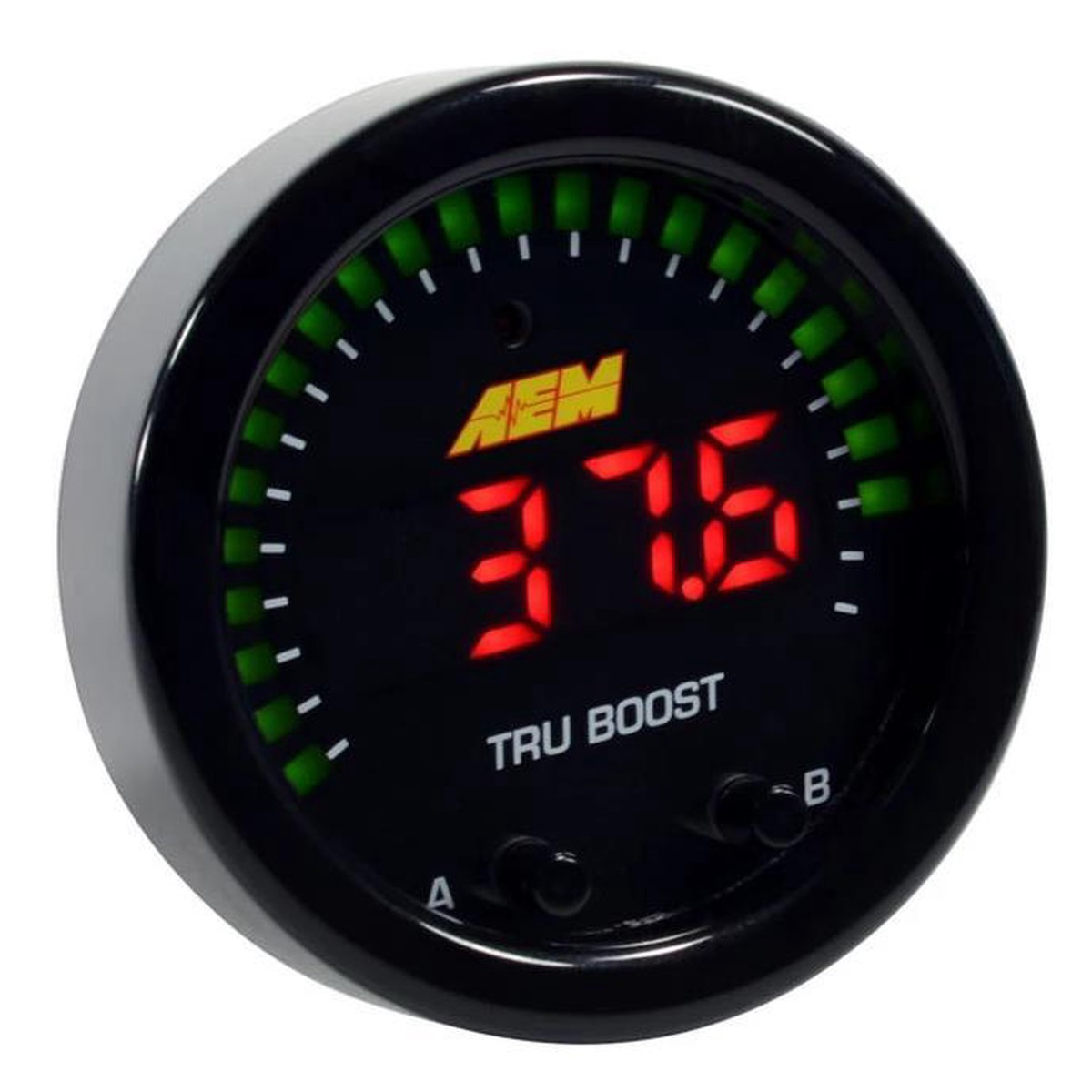

AEM TRU-BOOST X Gauge Type Controller AEM 30-0352

Tru-Boost joins X-Series line, now with AEMnet for data logging and an internal 80PSIg MAP Sensor.

The beloved Tru-Boost Gauge has been put to pasture, and is replaced with the new X-Series Tru-BoostX Boost Controller Gauge (PN 30-0352). The Tru-BoostX Boost Controller Gauge delivers all of the features you loved about the original only now with AEMnet for data logging and a big, fat internal MAP sensor that can handle boost pressures up to 80 PSI of boost. The King is dead, long live the King!

The Tru-BoostX Boost Controller gauge delivers digital accuracy but with the simplicity of a manual boost controller. All programming is done using the faceplate buttons and no laptop is required. AEMs specially designed Boost Control Solenoid and all necessary hardware is included.

Features

• A boost display gauge and boost controller in one!
• Easy to program – no laptop required
• Boost control solenoid and all necessary hardware included
• On-board 80PSIg MAP sensor – no upgrade kit needed for high boost vehicles
• Two boost level settings and scramble boost setting
• Wastegate open pressure setting for controlling boost spikes and faster spool
• Display boost levels in PSI, BAR or kPa
• Overboost protection and programmable alarms, ground output for optional LED warning light
• Peak boost level recall
• X-Series design for the best visibility (87% larger center LED and 33% larger face design)X-Series dimensions make it easier to install (0.825 overall depth, 0.20 cup depth)
• AEMnet CAN bus enabled for data logging (13 channels of data over 2-wire connection)
• Standard 52mm (2-1/16) cup
• 24 programmable green outer LEDs
• Auto dimming sensor for ideal brightness day or night
• Positive locking connectors

AEM 30-0352 Benefits

• Program Two Boost Levels + Scramble Boost Setting – Program two boost modes for different levels of performance (up to 80PSIg internal MAP sensor), and program a time-based scramble boost setting that is controlled using a switched input. You can also turn off the controller and use the gauge as a display
• Change Wastegate Open Pressure – Ideal for reducing boost spikes and improving spool up
• Display Boost Levels in PSIg (PSI), BAR or kPa (PAS) – See your boost in the units you prefer, and scale the 24 outer LEDs to match your peak boost levels for the perfect sweeping motion
• Set Alarms and Display Peak Boost – Set the 24 green outer LEDs to flash based on boost pressure so you are alerted to an overboost condition. A ground output is included for triggering an optional LED warning light. Select the B button to see peak boost level and clear the value using the menu
• Overboost Protection Built In – Protects your engine from an overboost condition by shutting the boost control solenoid off until it is reactivated by you through the buttons on the faceplate
• Integrated Error Protection – Alerts you to a fault if the boost control solenoid is shorted or disconnected so you are never left guessing whether the Tru-BoostX is operational
• Datalog using AEMnet CAN bus – Outputting channels over AEMnet provides so much more than just boost pressure! Send 13 channels of data over a 2-wire connection, including boost pressure, peak boost, boost target, boost scramble duty, overboost status, wastegate crack pressure, boost control solenoid status and more

Applications

• Universal

What’s in the box?

• AEM Tru Boost X Controller Gauge
• Controller Module
• Wiring Harness
• Tubing

Warranty

• Manufacturer Standard Warranty
