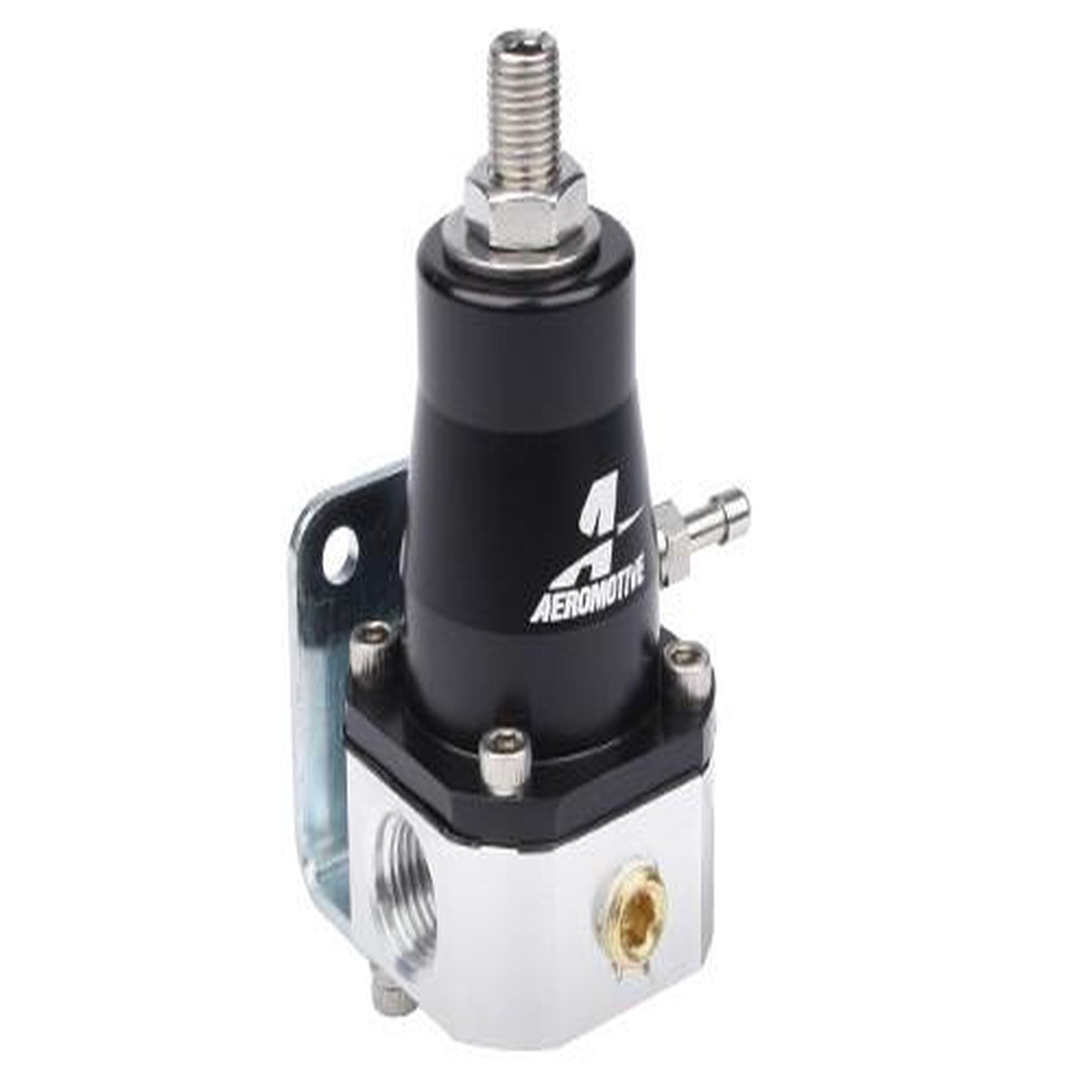

Aeromotive EFI Bypass Regulator

This EFI Bypass Regulator encompasses features and benefits only found on Aeromotive regulators and in a new smaller and lighter package. Capable of supporting applications up to 1000 HP, the 13129 EFI Bypass Regulator can handle high-flow EFI fuel pumps and the most aggressive street machines; especially those looking for a cleaner, lighter solution where performance is critical or where space is a premium.

Features

• Base pressure adjustable from 30-70 psi
• Fuel pressure rises on a 1:1 ratio with boost
• Provides (2) ORB-06 inlet/outet ports and (1) ORB-06 return port
• 1/8″ NPT gauge port
• Vacuum boost port
• CNC-Machined 6061 T6 billet aluminum construction
• Stainless steel mounting bracket

Applications

• Universal

Downloads

• Installation Instructions
