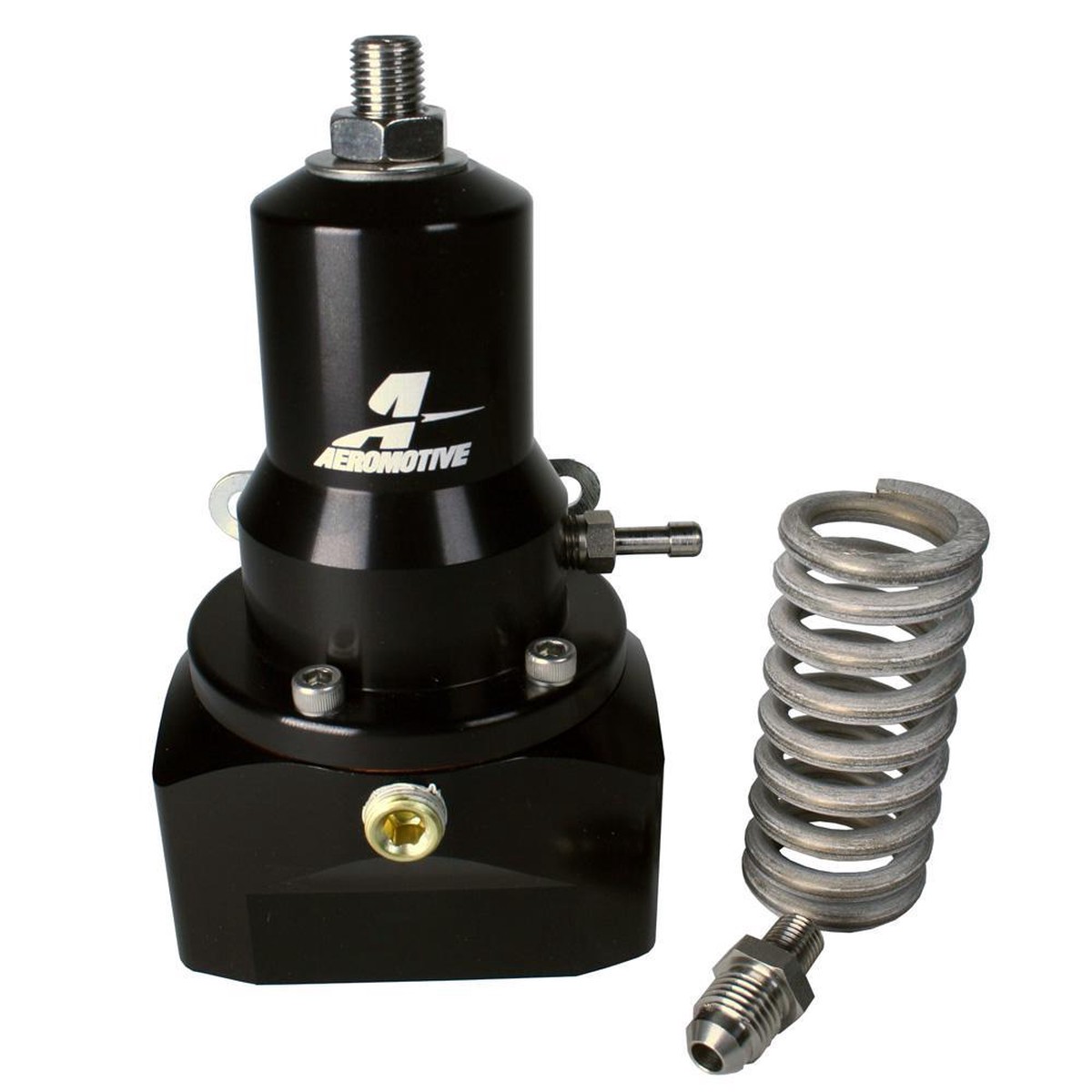

Extreme Flow EFI Regulator by Aeromotive

Aeromotive’s ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ORB ports! Its designed for use with Belt or Hex Drive Fuel Pumps.

Features

• Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port.
• 0.500 high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps.
• Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight.
• Standard spring (installed) supports 30-75 PSI base fuel pressure.
• High Pressure spring (included) supports 75-120 PSI base fuel pressure.
• Supports vacuum and boost reference on a 1:1 ratio with PSI.

Please Note: Designed for use with Belt or Hex Drive Fuel Pumps

Applications

• Universal

What’s In The Box?

• 1 – Extreme-Flow EFI Regulator
• 1 – Standard Spring (installed)
• 1 – High Pressure Spring

Warranty

• Manufacturer Standard Warranty
