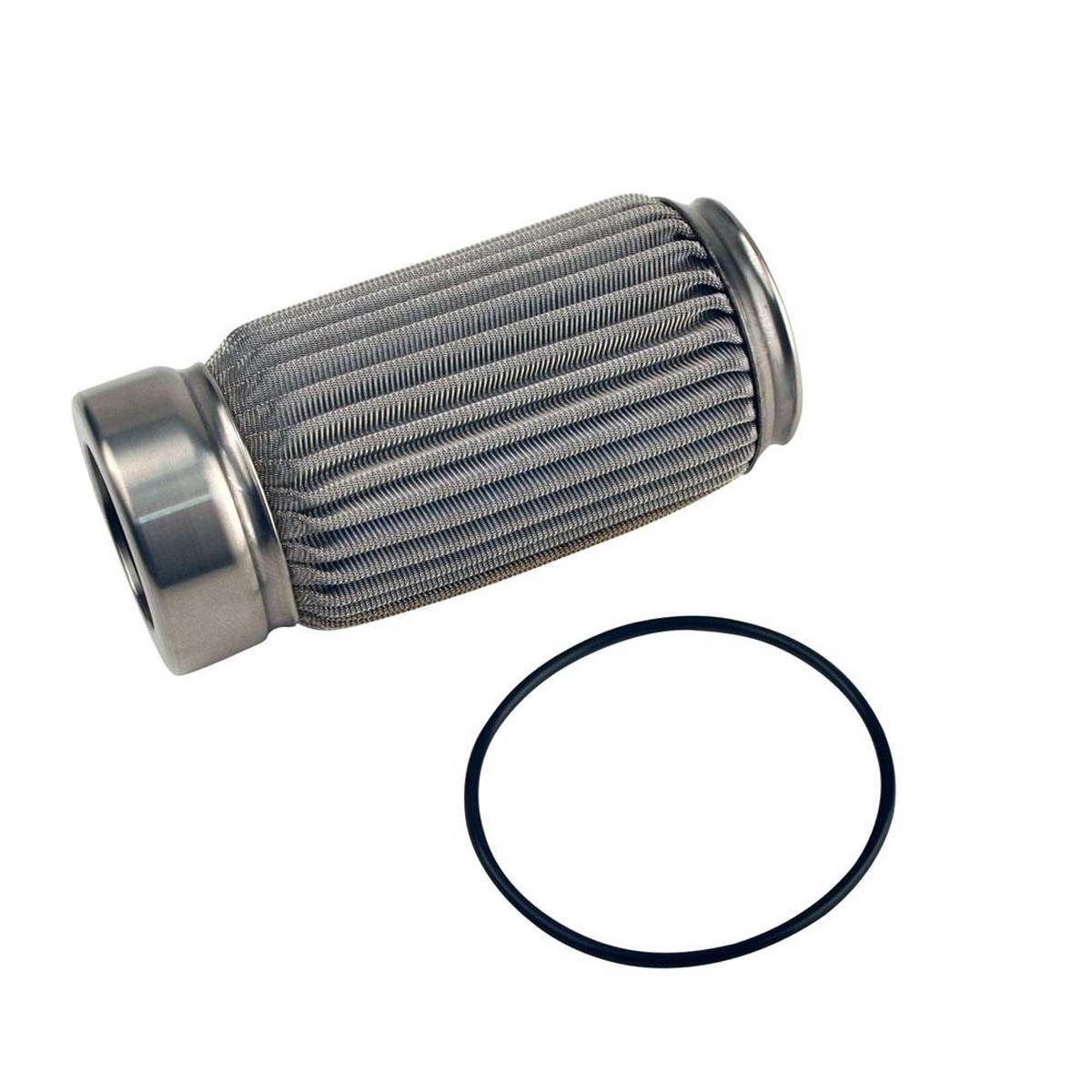

100-micron Stainless Mesh Crimp Construction Replacement Element by Aeromotive Inc.

Service element for Aeromotive Billet, in-line filters.

Suitable for use on the pressure side of a fuel pump only, with gasoline, diesel, ethanol and methanol based fuels. Recommended for all medium to large electric pumps and all mechanical pumps, belt or hex drive, 6 Series pumps up to 32-GPM Spur Gear pumps.

Features

• Fits 12304/12307/12324/12331/12354.
• Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.
• Approved for use in alcohol fuels including ethanol and methanol.
• Over 60-sq. inches of element surface area supports high flow while providing good service life.
• Flow capacity of up to 900 GPH (15.0 GPM) with less than 1-PSI pressure drop.
• Supports up to 8,300 Flywheel HP, Forced Induction, on gasoline.
• Supports up to 6,000 Flywheel HP, Forced Induction on Ethanol.
• Supports up to 2,800 Flywheel HP, Forced Induction on Methanol.
• Ideal as a post pump filter with gasoline, ethanol and methanol burning engines using medium to large electric pumps and 6 and 12 Series (belt and hex driven) mechanical fuel pumps.

Applications

• Universal

What’s In The Box?

• 1 – Replacement Element.

Warranty

• Manufacturer’s Warranty.
