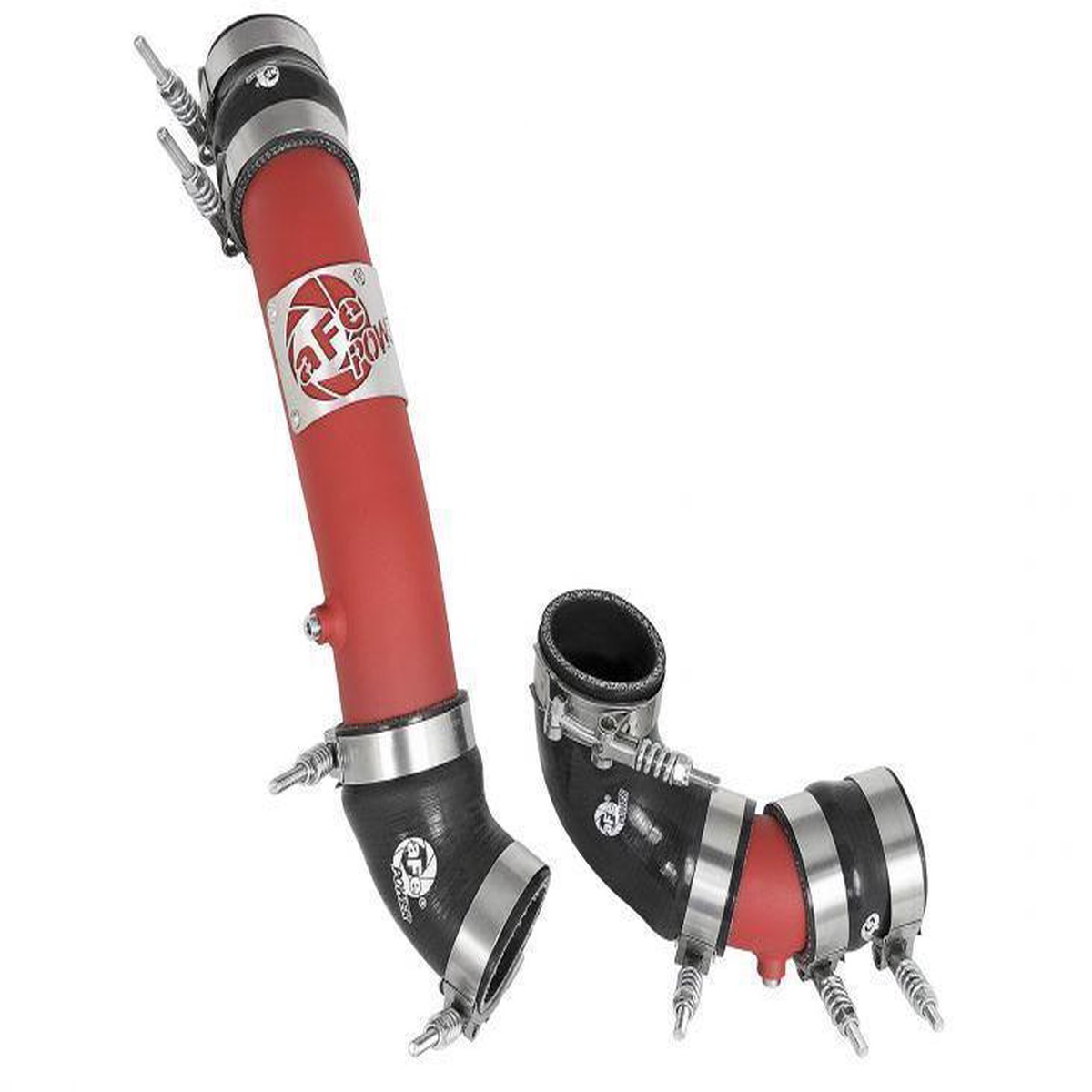

2017-2020 Civic Type-R BladeRunner Intercooler Tubes by aFe Power

The aFe intercooler tubes are constructed out of mandrel bent, powder-coated texture red aluminum tubing to maximize flow. The Hot-Side tube is 2-1/4 in diameter and the cold side is 2-1/2 in diameter. The smooth transition bends decrease turbulence and minimize boost loss, which increases horsepower and torque. The aFe tubes outflow the factory tubes by 7%.

Utilizes the factory mounting locations to provide stability for a hassle-free installation. Includes high quality stainless steel spring loaded t-bolt clamps and heavy-duty 5-Ply couplings for strength. This intercooler tube kit comes with one 1/8″ NPT fitting on each tube to be used for sensors or injection or be plugged with the supplied plug. A unique aluminum laser-cut aFe power logo plate is welded-on for an aggressive style.

Features

• Outflows stock I/C tubes up to 7%
• Constructed from 2-1/4″ & 2-1/2″ mandrel-bent aluminum tubing for increased flow and reduces turbulence
• Powder-coated textured red for heat resistance
• Includes both Hot and Cold side intercooler tubes
• Includes premium clamps and silicone couplings for long life, perfect fit, and strength
• Works with the factory intercooler
• One 1/8″ NPT port on each tube is provided for connecting a pressure sensor or water methanol injection
• No modifications needed
• Uses all factory mounting locations and includes necessary hardware for a hassle-free installation

Applications

• 2017 – 2020 Honda Civic Type-R

What’s In The Box?

• 1 – Hot Side Piping
• 1 – Cold Side Piping
• 4 – Silicone Couplers
• 8 – Clamps
• 1 – aFe License Plate Frame
• Necessary Hardware

References

• Installation Instructions

Warranty

• aFe Manufacturer’s Warranty
