Specifications

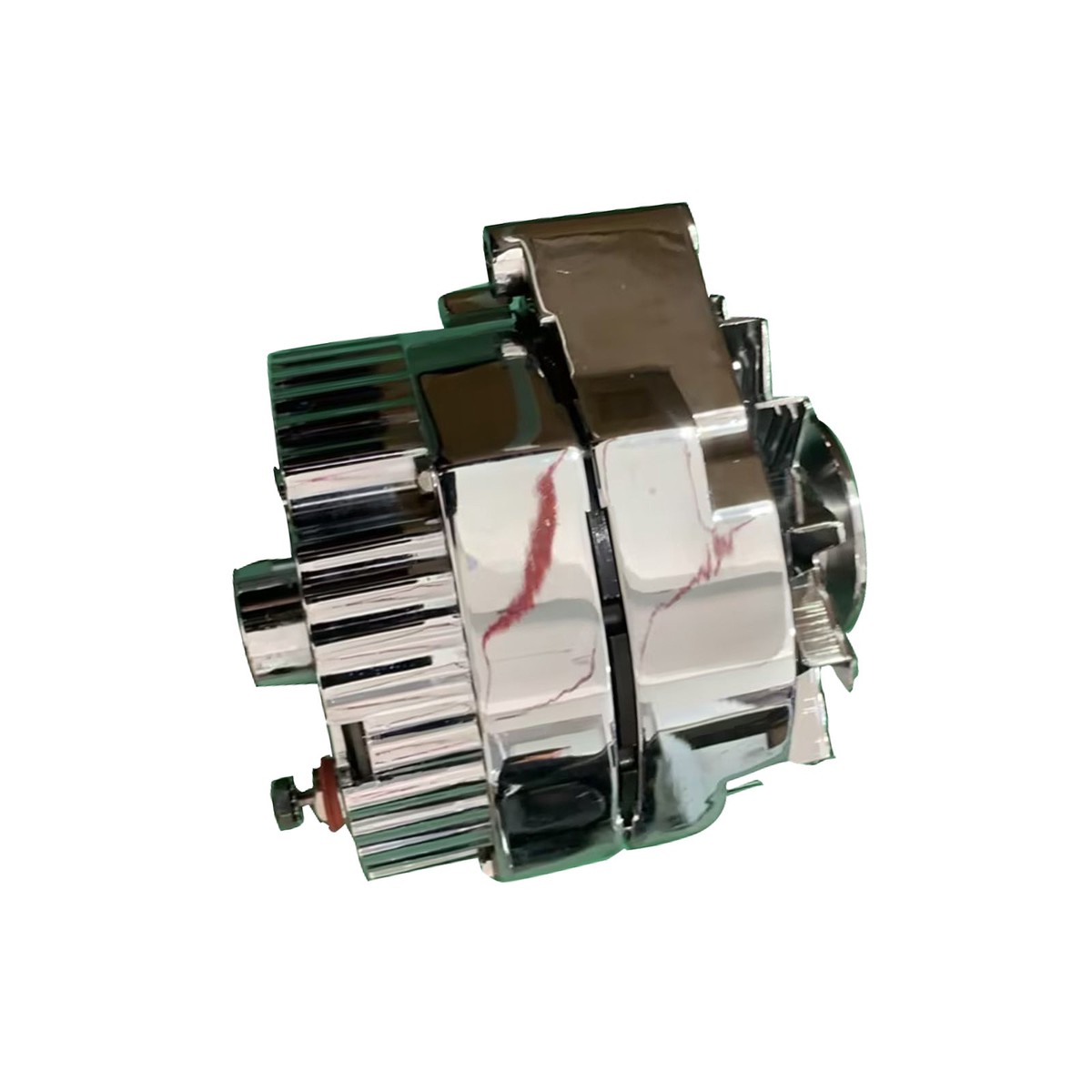

Type: Alternator
Warranty: 1 year
Voltage: 12 V
Plug: RP169
Amperage: 100 A
Pulley (mm): 67
Pivot Hole (mm): 10
Number of Grooves: 1A
Features: Pulley Included
Pivot Length (mm): 60
Adjustment to Pivot (mm): 165
Adjustment Hole (mm): M10x1.25
Reference Numbers: Suitable for AF4870-1100_17, AF4870-1100, AF4870-1100AA, 347205 100A

Feature
Compatible with both 1-wire and 3-wire hookup configurations
Designed to replace existing 1-wire, V-belt type, internal regulator GM-style alternators
Mounting points with approx. 18mm outside depth (short side) and 51mm (long side)
Distance between mounts (inside edge to inside edge): 159mm
Bolt center spacing between mounts: 6.60 inches (167.6mm)
Built with standard GM 10SI-style case featuring 6.600 (167.6mm)-inch bolt centers
Overall length from rotor shaft front to deepest rear point: approx. 165mm

Ensure correct fitment by comparing these measurements with your original alternator

Compatible with:
Suitable for GM Small Block Chev V8 283, 307, 327, 350
Suitable for Chevrolet Various V8 307, 327, 350, 454 5.0L, 5.7L (1992-94)
Suitable for Chevrolet Blazer V8 5.7L (1993-94)
Suitable for Chevrolet C, K Series Pickup 5.7L & 7.4L (1993-95)
Suitable for Chevrolet G Series Van 6.5L (1994-96)
Suitable for Chevrolet P Series Step Van 6.5L (1994-95)
Suitable for Chevrolet Suburban 5.7L & 7.4L (1993-95)
Suitable for Chevrolet Tahoe 6.5L (1995)
Suitable for Chevrolet Yukon 5.7L (1993-95)
Suitable for Chevrolet Corvette C2 Engine 327 V8 5.4L Petrol (1965-68)
Suitable for Chevrolet Corvette C3 Engine 350 V8 5.7L Petrol (1969-79)
Suitable for Chevrolet Corvette C3 Engine 454 V8 7.4L Petrol (1972)
Suitable for Chevrolet Camaro G2 Engine 350 5.7L Petrol (1974-80)
Suitable for Chevrolet Camaro G2 Engine LG4 5.0L Petrol (1981-84)
Suitable for Chevrolet Camaro G2 Engine LU5 5.0L Petrol (1982-84)
Suitable for Chevrolet Camaro G3 Engine 350 5.7L Petrol (1981)
Suitable for Chevrolet Camaro G3 Engine LB9 5.0L Petrol (1985-86)
Suitable for Chevrolet Camaro G3 Engine LG4 5.0L Petrol (1987)
Suitable for Chevrolet Belair Engine 235 3.8L Petrol (1955-57)
Suitable for Chevrolet Belair Engine 236 3.9L Petrol (1955-57)
Suitable for Chevrolet Belair Engine 265 4.3L Petrol (1955-57)
Suitable for Chevrolet G20 Engine 305 5.0L Petrol (1981-86)
Suitable for Chevrolet G20 Engine L05 5.7L Petrol (1987-95)
Suitable for Chevrolet Nova Engine 250 4.1L Petrol (1972-79)
Suitable for Chevrolet Nova Engine 307 5.0L Petrol (1972-73)
Suitable for Ford 289, 302W, 351W, 351C, Cleveland, Windsor Engine
Suitable for Ford Clapper Automotive (1989-96)
Suitable for Buick 4.1L, 4.3L, 5.7L, 7.5L (1982-73)
Suitable for Cadillac 4.1L, 5.7L, 6.0L, 7.0L, 7.7L, 8.2L (1980-73)
Suitable for Chevrolet 2.0L, 2.3L, 3.3L, 3.8L, 4.3L, 4.9L, 5.0L, 5.7L, 6.2L, 7.4L (1986-73)
Suitable for GMC 2.0L, 3.3L, 3.8L, 4.3L, 6.2L, 7.4L (1986-78)
Suitable for Oldsmobile 2.3L, 4.3L, 5.0L, 5.7L (1982-75)
Suitable for Pontiac 2.3L, 2.5L, 3.8L, 4.3L, 4.9L, 5.0L, 5.7L, 6.6L (1984-75)
Suitable for Buick Century 2.8L (1982)
Suitable for Buick Skylark 2.8L (1980-84)
Suitable for Chevrolet Camaro 2.8L (1982-84)
Suitable for Chevrolet Celebrity 2.8L (1982)
Suitable for Chevrolet Citation 2.8L (1980-84)
Suitable for Chevrolet Monza 2.5L (1978-79)
Suitable for Jeep J Series Pickup 6.6L (1978)
Suitable for Oldsmobile Omega 2.8L (1980-84)
Suitable for Oldsmobile Starfire 2.5L (1978)
Suitable for Pontiac 6000 2.8L (1982)
Suitable for Pontiac Astre 2.5L (1977)
Suitable for Pontiac Firebird 2.8L (1982-84)
Suitable for Pontiac Phoenix 2.5L, 2.8L (1978-84)
Suitable for Pontiac Sunbird 2.5L (1977-79)

Package include:
1 x Alternator
