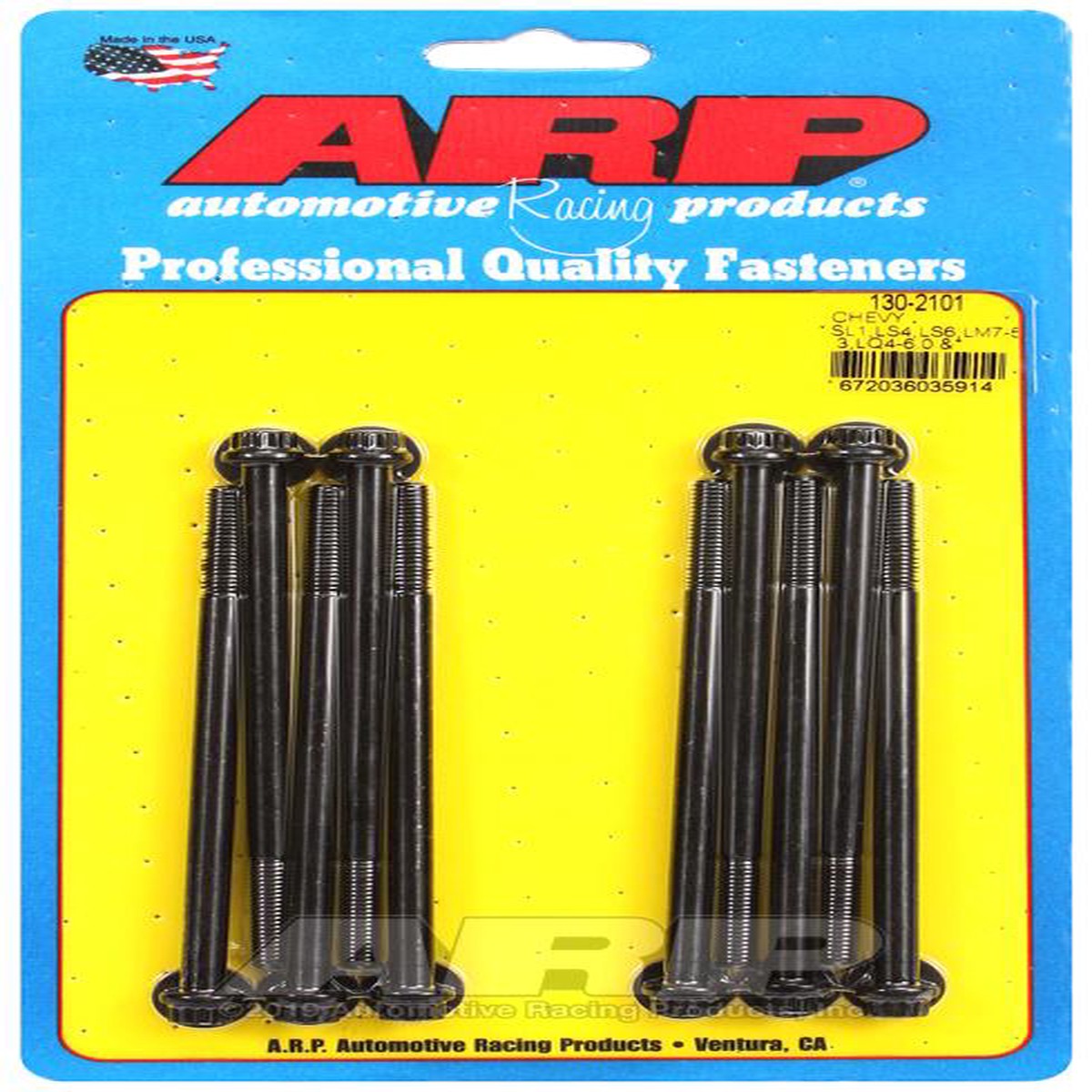

Intake Manifold Bolt Kit by ARP

ARP rugged, black-oxide coated chromoly intake manifold bolts are rated at 170,000 psi. They’re precision-machined for optimum thread engagement and have a wide-area flange for better load distribution. They also feature precision-rolled threads, which prevent galling, while promoting more consistent torque loading. These bolts are available with either hex or 12-point heads, and washers are included.

Features

• Thread Size: M6 x 1.0
• Washer Included: Yes
• Head Style: 12-point
• Fastener Style: Bolt
• Fastener Finish: Black oxide
• Fastener Material: Chromoly

Benefits

• Precision-rolled threads
• Which prevent galling
• Promote more consistent torque loading

Please Note: These bolts have a 4.480 in. under head length.

Applications

• 1997 2004 Chevrolet Corvette
• 1998 2002 Pontiac Firebird Formula, Trans Am
• 1998 2002 Chevrolet Camaro Z/28, SS
• 2004 Pontiac GTO
• 2001 2005 Holden Monaro
• 1999 2005 Holden Statesman
• 2001 2004 HSV GTO
• 2001 2004 Corvette Z06
• 2004 2005 Cadillac CTS V-Series
• 2007 SSC Ultimate Aero TT
• 2003 2006 Chevrolet Express/GMC Savana
• 1999 2006(2007 Classic) Chevrolet Silverado/GMC Sierra 1500
• 2000 2006 Chevrolet Tahoe/GMC Yukon
• 2005 2008 Pontiac Grand Prix GXP
• 2006 2009 Chevrolet Impala SS
• 2006 2007 Chevrolet Monte Carlo SS
• 2008 2009 Buick LaCrosse Super

What’s In The Box?

• 10 – Bolts

Warranty

• Manufacturers Standard Warranty
