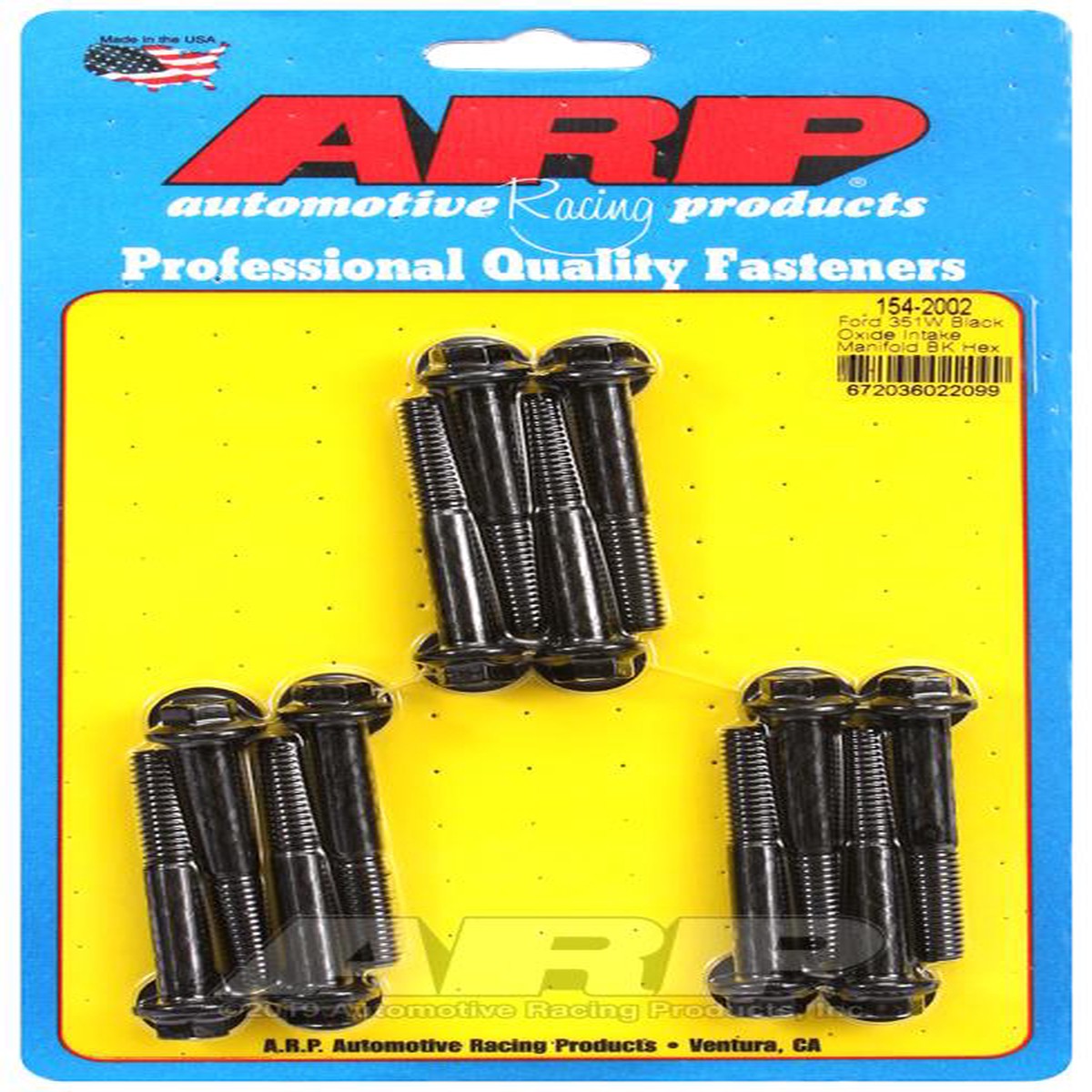

Intake Manifold Bolt Kit by ARP

ARP rugged, black-oxide coated chromoly intake manifold bolts are rated at 170,000 psi. They’re precision-machined for optimum thread engagement and have a wide-area flange for better load distribution. They also feature precision-rolled threads, which prevent galling, while promoting more consistent torque loading. These bolts are available with either hex or 12-point heads, and washers are included.

Features

• Thread Size: 5/16 in.-18
• Washer Included: Yes
• Head Style: Hex
• Fastener Style: Bolt
• Fastener Finish: Black oxide
• Fastener Material: Chromoly

Benefits

• Precision-rolled threads
• Which prevent galling
• Promote more consistent torque loading

Please Note: Bolt underhead length measures 2.250 in. Uses 3/8 in. socket.

Applications

• 1978 – 1996 Ford Bronco
• 1995 – 1996 Ford Club Wagon
• 1969 – 1974 Ford Country
• 1969 – 1977 Ford Custom
• 1975 – 1996 Ford E-series
• 1975 – 1976 Ford Elite
• 1977 – 1979 Ford F-100
• 1977 – 1996 Ford F-150
• 1986 Ford F-200
• 1977 – 1997 Ford F-250
• 1977 – 1997 Ford F-350
• 1969 – 1970 Ford Fairlane
• 1969 – 1970 Ford Falcon
• 1969 – 1974 Ford Galaxie
• 1975 – 1977 Ford Granada
• 1969 – 1991 Ford LTD
• 1969 – 1973, 1995 Ford Mustang
• 1993, 1996-1997 Ford P-Series
• 1969 – 1974 Ford Ranch Wagon
• 1969 – 1979 Ford Ranchero
• 1977 – 1979 Ford Thunderbird
• 1969 – 1976 Ford Torino

What’s In The Box?

• 12 – Bolts

Warranty

• Manufacturers Standard Warranty
