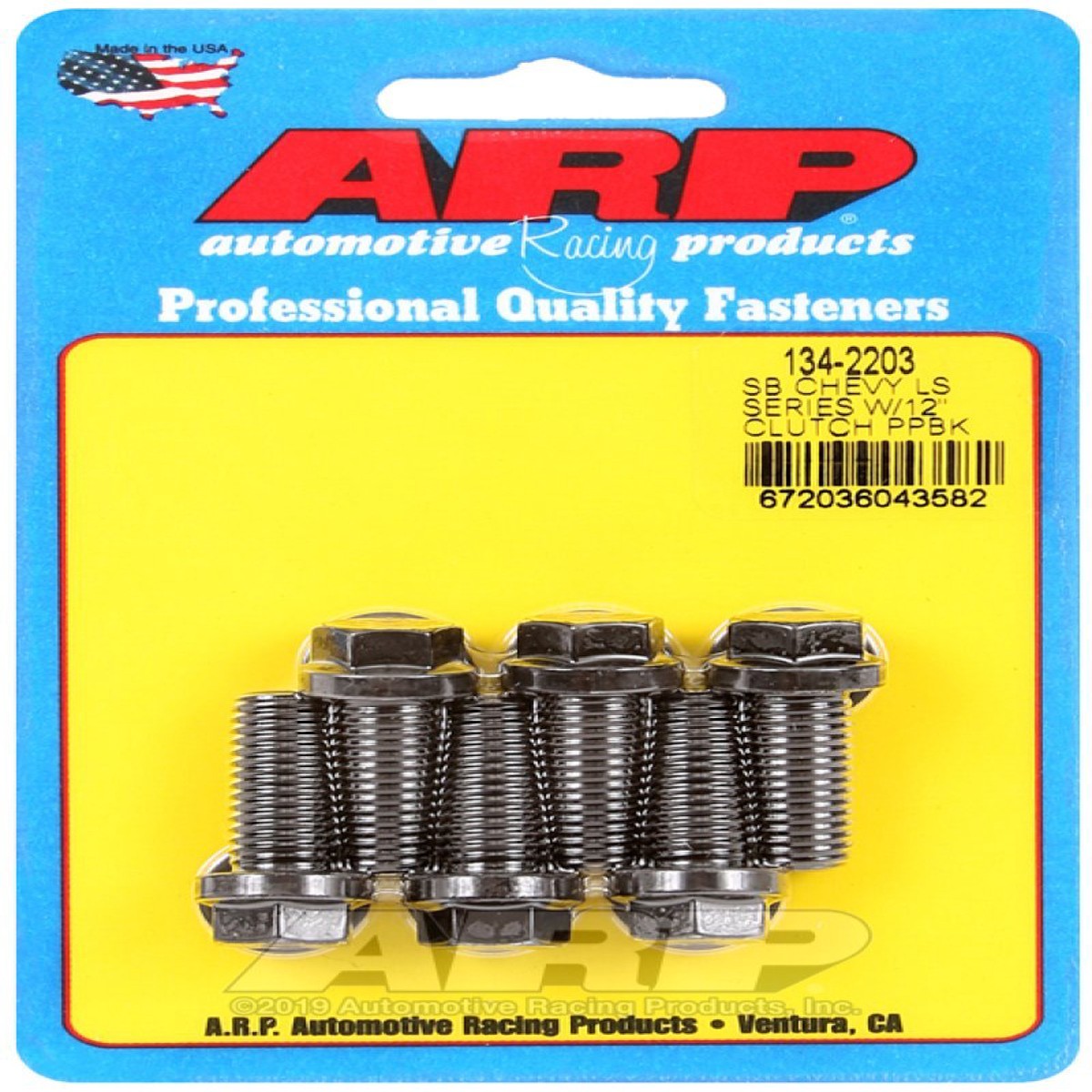

Pressure Plate (Clutch Cover) Bolt Kit by ARP

The importance of pressure plate bolts in a racing or high performance street applications cannot be emphasized nearly enough. These fasteners play a key role in both the performance and safety of a vehicle. Because of this, ARP has developed special pressure plate bolts that are application-specific to ensure the optimum grip length. ARP High Performance Series bolts are made from a premium-grade chromoly and hardened to a nominal tensile strength of 180,000 psi. Choose the thread size needed for your make and model.

Features

• Fastener Style: Bolt
• Thread Size: M10 x 1.5
• Fastener Material: Chromoly
• Fastener Finish: Black oxide
• Fastener Head Style: Hex head
• Wrench Diameter: 10mm
• Underhead Length (in.): 0.984 in.
• Underhead Length (mm): 25.00mm
• Fastener Tensile Strength (psi): 180,000 psi
• Washers Included: Yes
• Nuts Included: No
• Nut Material: Chromoly
• Nut Finish: Black oxide

Benefits

• Made from a premium-grade chromoly
• Hardened to a nominal tensile strength of 180,000 psi

Please Note: Made for LS engines with a 12 in. clutch only.

Applications

• 1997 2004 Chevrolet Corvette
• 1998 2002 Pontiac Firebird Formula, Trans Am
• 1998 2002 Chevrolet Camaro Z/28, SS
• 2004 Pontiac GTO
• 2001 2005 Holden Monaro
• 1999 2005 Holden Statesman
• 2001 2004 HSV GTO
• 2001 2004 Corvette Z06
• 2004 2005 Cadillac CTS V-Series
• 2007 SSC Ultimate Aero TT
• 2005 2007 Chevrolet Corvette
• 2005 2006 Chevrolet SSR
• 2006 2009 Chevrolet TrailBlazer SS
• 2006 2007 Cadillac CTS V-Series
• 2005 2006 Holden Monaro
• 2005 2006 Pontiac GTO (peak power at 5200 rpm, peak torque at 4000 rpm)
• 2005 2006 Vauxhall Monaro VXR
• 2005 2006 HSV Coup GTO
• 2005 2006 HSV SV6000
• 2005 2008 HSV Clubsport R8, Maloo R8, Senator Signature and GTS
• 2005 2008 HSV Grange
• 2008 2009 Saab 9-7X Aero
• 2005 2008 Pontiac Grand Prix GXP
• 2006 2009 Chevrolet Impala SS
• 2006 2007 Chevrolet Monte Carlo SS
• 2008 2009 Buick LaCrosse Super
• 2006 2013 Chevrolet Corvette Z06
• 2013 Corvette 427 Convertible
• 2014 2015 Chevrolet Camaro Z/28
• 2008 2013 Chevrolet Corvette
• 2011 Jensen Interceptor R
• 2010 2015 Chevrolet Camaro SS (manual only)
• 2008 2017 Various Holden
• 2009 Pontiac G8 GXP
• 2014 2017 Chevrolet SS
• 2009 2013 Chevrolet Corvette ZR1
• 2009 2015 Cadillac CTS-V
• 2012 2015 Chevrolet Camaro ZL1

What’s In The Box?

• 6 – Bolts

Warranty

• Manufacturers Standard Warranty
