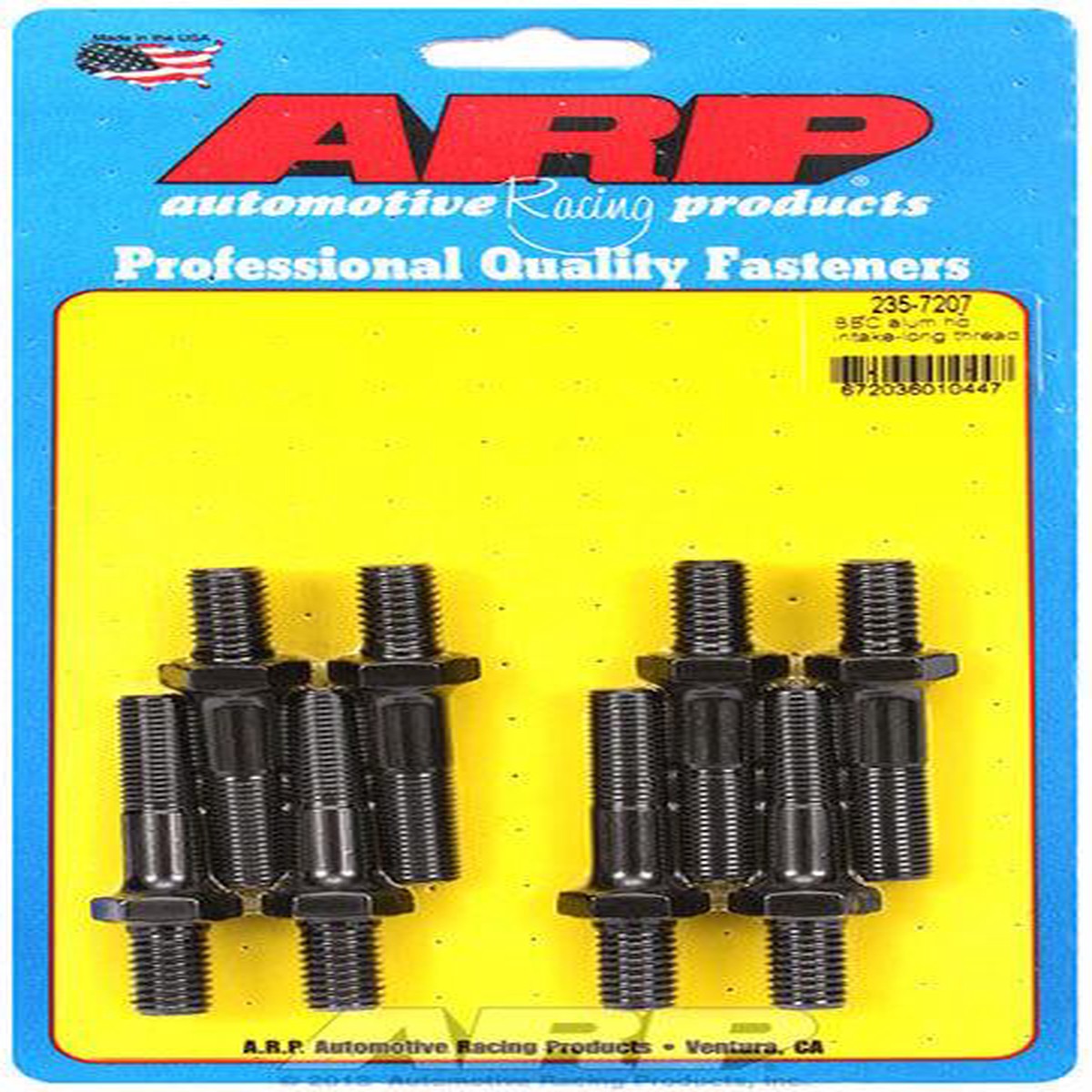

Rocker Arm Stud Kit by ARP

ARP Pro Series rocker arm studs are ideal for competition applications. They are made from 8470 chromoly steel and are heat-treated to 200,000 psi tensile strength. They are concentric within .005 T.I.R. thread pitch to thread pitch, which will give you more consistent rocker geometry. With an extra-large radius base, these studs are more resistant to flex and will provide a more positive seating. Pro Series rocker arm studs were designed for use with Perma-Loc adjusters (not for use with OEM-style, self-locking nuts).

Features

• Base Thread Size: 7/16 in.-14
• Rocker Arm Nut Thread Size: 7/16 in.-20
• Guideplate Locator Shank: Yes
• Rocker Arm Nut Thread Length (in.): 1.000 in.
• Effective Stud Length (in.): 2.000 in.
• Base Thread Length (in.): 0.820 in.

Benefits

• Made from 8470 chromoly steel
• Heat-treated to 200,000 psi tensile strength
• Far superior to even Grade 8 hardware

Applications

• 1965 Chevrolet Corvette
• 19651972 Chevrolet Chevelle
• 19671972 Chevrolet Camaro
• 19681970 Chevrolet Nova
• 19701972 Chevrolet Monte Carlo, Chevrolet trucks
• 19651972 Chevrolet Biscayne, Chevrolet Bel Air, Chevrolet Impala, Chevrolet Impala SS, Chevrolet Caprice
• 19661969 Chevrolet Biscayne
• 19661969 Chevrolet Caprice
• 19661969 Chevrolet Impala
• 19661969 Chevrolet Corvette
• 19681969 Chevrolet Camaro (most were dealer installed, but in 1969 both the L-72 and the ZL-1 were factory options)
• 19701976 Chevrolet Caprice
• 19701975 Chevrolet Chevelle
• 19701975 Chevrolet Monte Carlo
• 19701975 Chevrolet El Camino
• 19711972 GMC Sprint
• 19701974 Chevrolet Corvette

What’s In The Box?

• 8 – Studs

Warranty

• Manufacturers Standard Warranty
