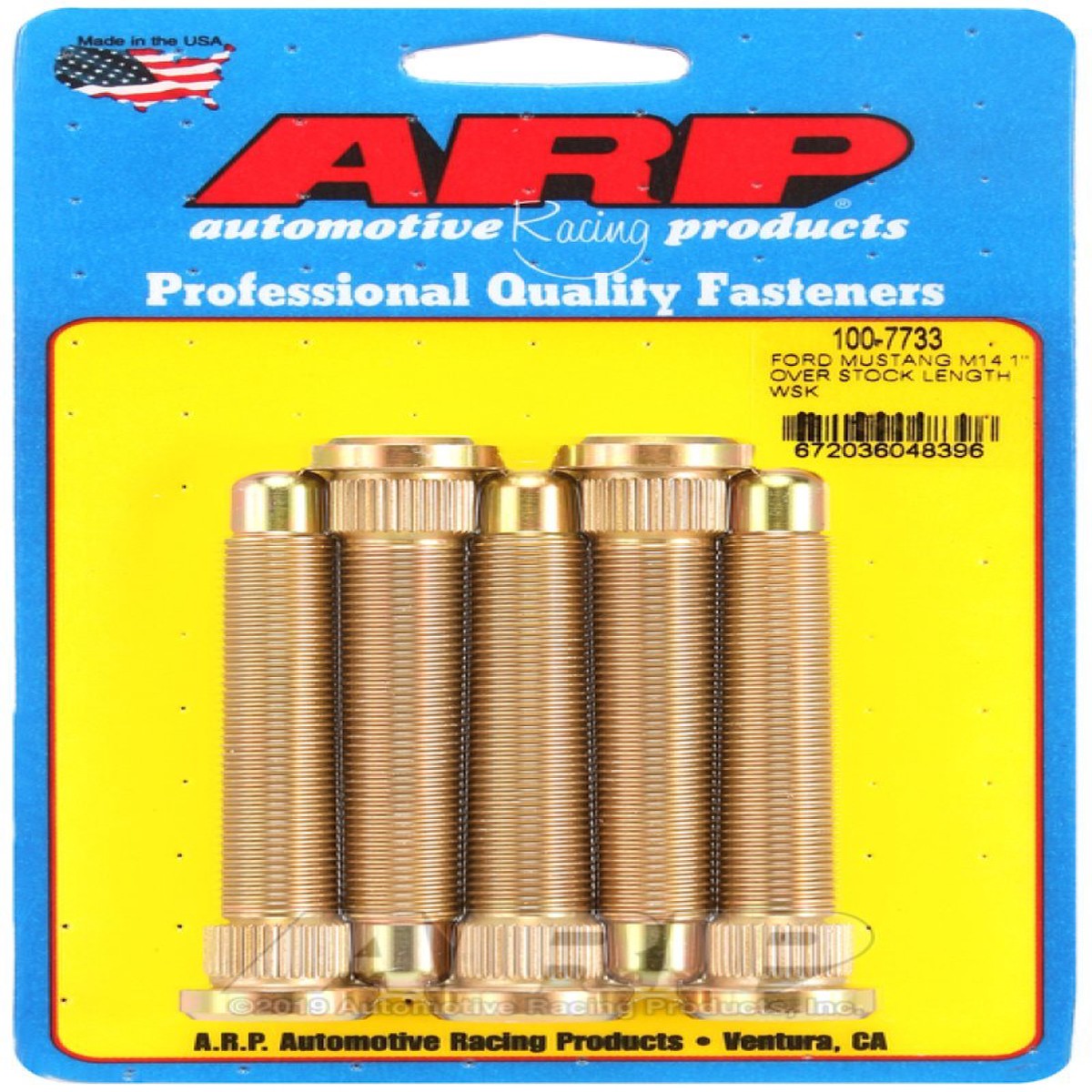

2015 Ford Mustang Wheel Stud Kit by ARP

ARPs Performance R&D Division has just released two new M14 x 1.50 wheel stud kits for 2015 Ford Mustang applications. ARP wheel studs are manufactured from premium grade heat treated 8740 chrome moly steel, nominally rated at 190,000 psi tensile strength and cadmium plated for extra durability. These studs are able to easily handle the tremendous acceleration, shock loads and lateral forces found in racing applications. Available in both 2.935 UHL (0.500 over stock) and 3.435 UHL (1.00 over stock) and packaged in five-piece packs.

Features

• Knurl Diameter : 0.625
• UHL : 3.435
• Knurl Length : 0.400
• Nose Length : 0.435
• Thread Size : M14 x 1.50
• Wheel Stud Hole Size – Cast Iron/Steel Hub : 0.609 – 0.619
• Cast Iron/Steel Hub Drill Bit Size (actual dim.) : 39/64 (0.609)
• Wheel Stud Hole Size – Aluminum Hub : 0.609 – 0.615
• Aluminum Hub Drill Bit Size (actual dim.) : 39/64 (0.609)

Benefits

• Easily handles tremendous acceleration shock loads

Applications

• 2015 Ford Mustang

What’s In The Box?

• 5 – Wheel Studs

Warranty

• Manufacturers Standard Warranty
