Braided Stainless Steel Line by Autometer

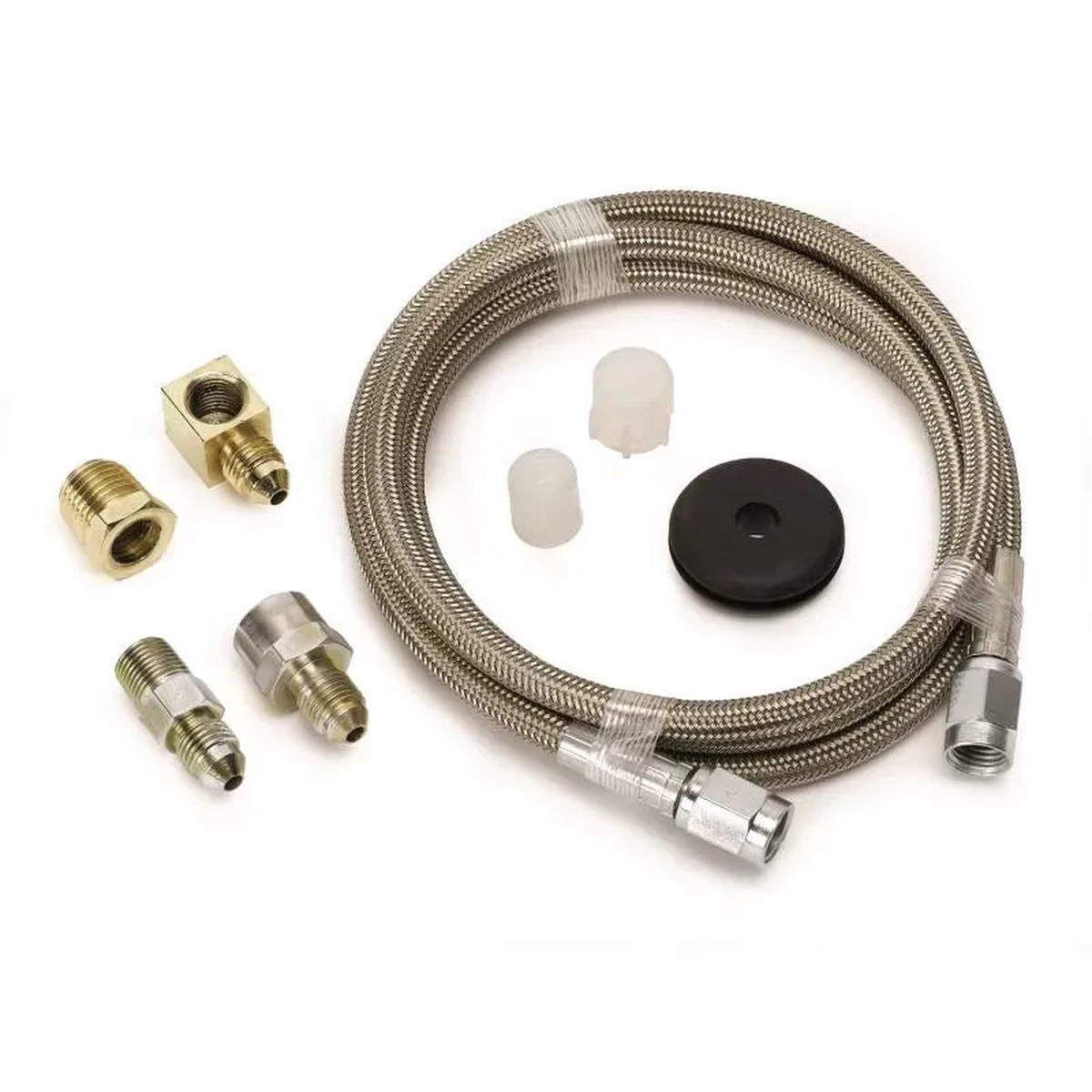

Includes 4ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8″ NPT female right angle to -3AN male fitting, -3AN male to 1/8″ NPT male fitting, -3AN male to 1/8″ NPT female fitting, 1/8″ NPT to 1/4″ NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

Features

• For Mechanical Pressure Gauge
• Type 304 Braided Stainless Steel Hose
• 4 ft. Hose Length

Benefits

• PTFE Lined Hose That Is Resistant To Most Fluids
• Maximum Operating Pressure-3000 PSI
• Operating Temperature -65 to 450 Deg. F

Applications

• Universal

What’s In The Box?

• 1 – Tubing / Line

References

• Installation Instructions

Warranty

• 12 Month Warranty
