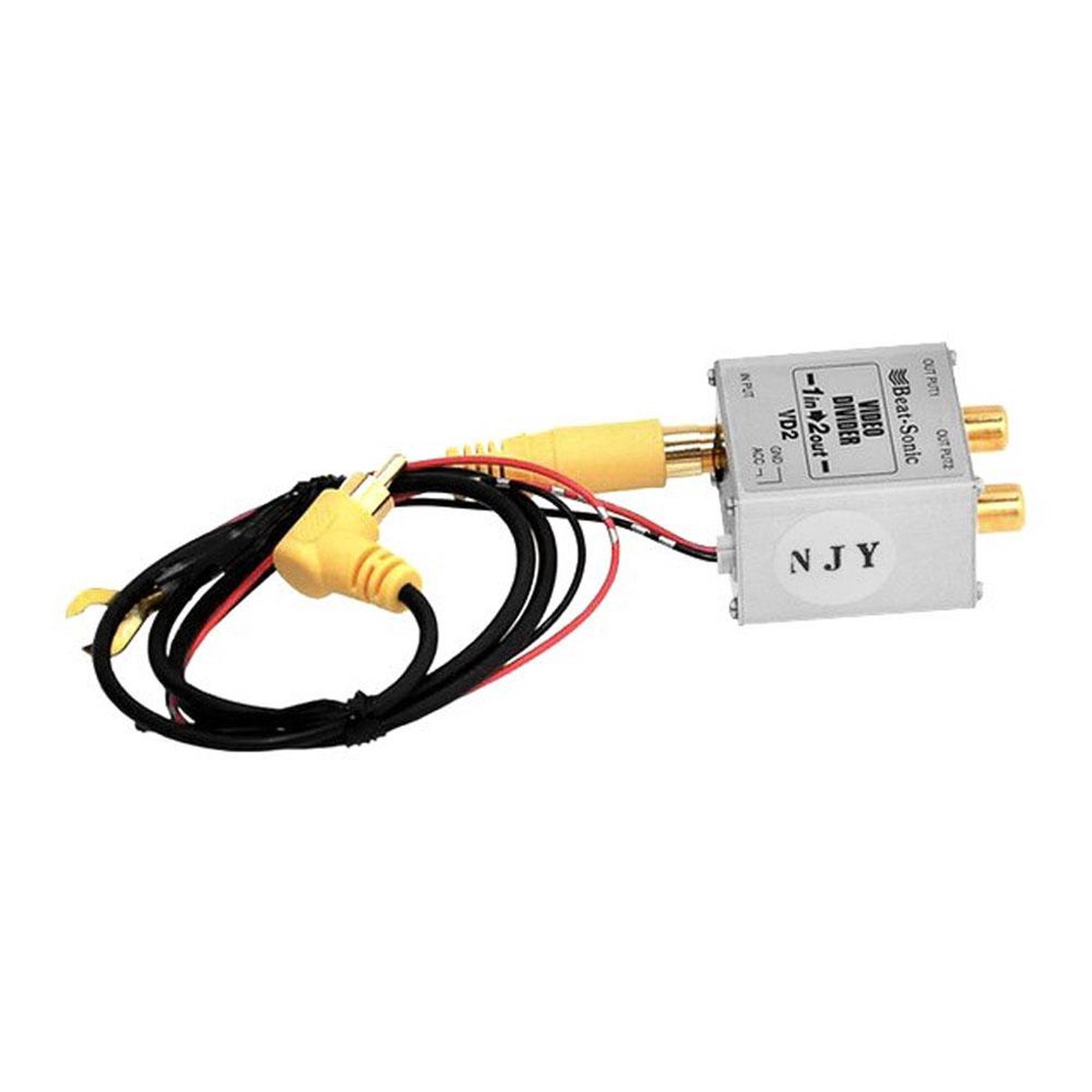

VD2 1 Into 2 Video Amplifier by Beat-Sonic

Universal Video Splitter (VD2) by Beat-Sonic. 1 Input for 2 Outputs. This video signal distribution amplifier allows you to split an incoming composite video connection to several other connections perfect for a multi-display setup. Its powered for maximum quality and minimal signal loss. Gold played RCA jacks ensure a quality connection.

Features

• Power: DC11V-15V
• Input/Output: 1 input, 2 output
• Input/Output terminal: Gold plated RCA terminal
• Input/Output level: 1.0 Vpp 75 ohm
• Power consumption: Less than 50mA

Benefits

• 1 input for 2 output video signal splitter.
• Powered for maximum quality and minimal signal loss.
• High quality and specialized parts ensure clear and stabilized output.
• Hard aluminum body protects the device from heat and harsh environments.
• Filters out incoming noises from unwanted sources.
• Gold plated terminal, high quality circuit and specially selected parts were used to ensure high clarity picture output.
• Extremely compact size, smallest in the industry.

Applications

• Universal

What’s In The Box?

• 1 – Video Amplifier/Splitter

Warranty

• Beat-Sonic products come with a limited warranty covering manufacturer’s defects. Products that shows signs of abuse and improper installation and usage will not be covered under our policy.
