Specification:
Color: Black
Button: 2 Buttons
Key Blank: Yes
Transponder Chip: 4D-67
Electronics/Battery: YES
Frequency: B41TA

Feature:

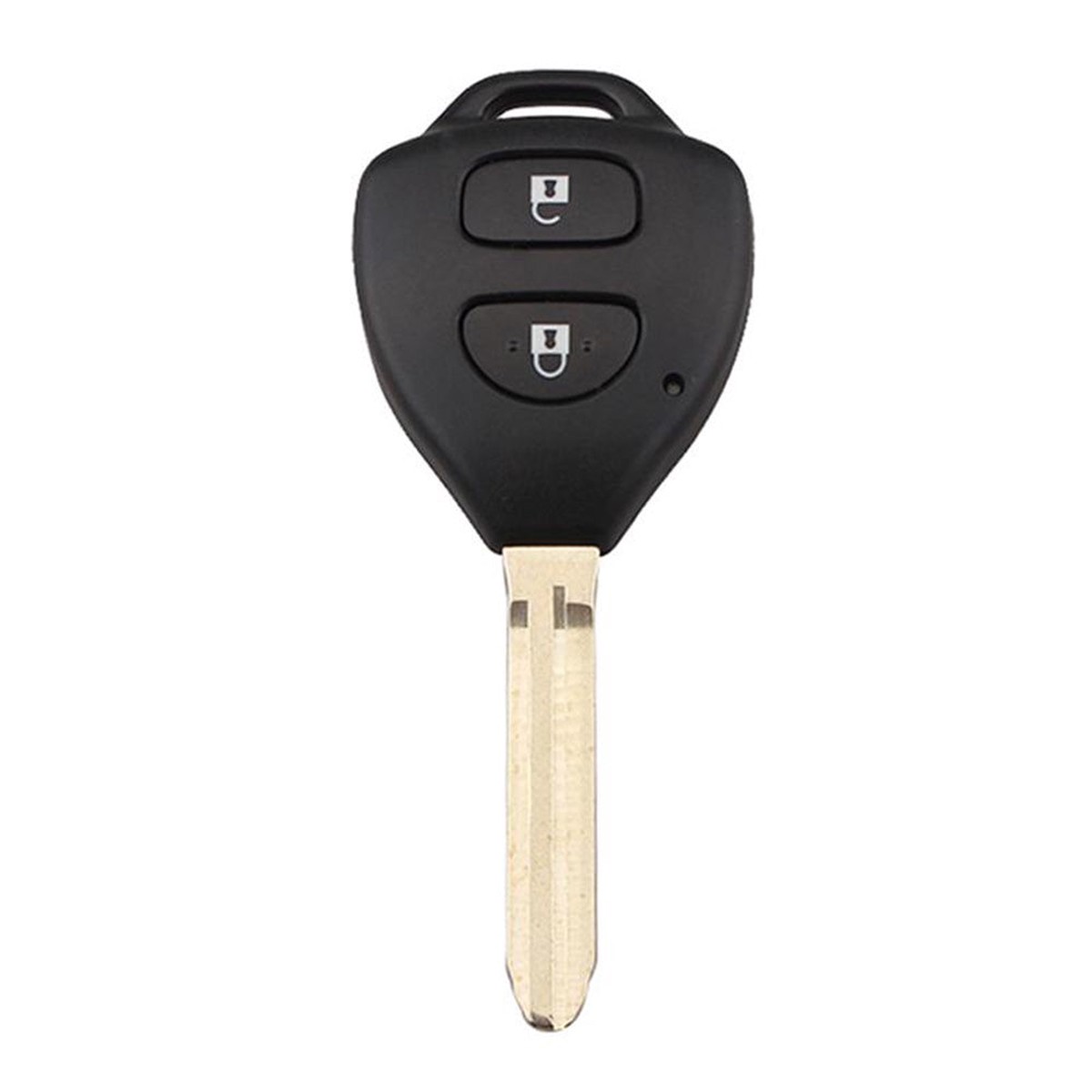

The item is a new DIY remote key.
The key includes key housing, circuit board, chip and battery. It’s a full remote key.
The key is suitable for your original key with the same frequency, blade and appearance

Compatible with:
Suitable For Hilux 03/2005 to 09/2009
Suitable For Series TGN16R-GGN15R-GGN25R-KUN26R
Suitable For Yaris 10/2005 to 09/2008

Package Includes:
1 x 2 Buttons Remote Key
1 x Circuit board
1 x Key Chip
1 x Battery

Important Notice
Key will need to be cut and programmed by either a Locksmith or program yourself by following instructions listed
You will need to have at least one working either black key or another remote key
It will not work if you have service grey key
To check this is correct key for your car you can pop open your existing key case cover and check number stamped be on remote part number should be B41TA if your key is B41TH please advise so we can send you correct key
Please check this before purchasing- DO NOT BUY IF THIS NUMBER IS NOT STAMPED ON REMOTE
This key is not compatible with the remote key which has “G” stamped on the blade nearby the case.

Remote Programming Steps – Do it yourself
3 Easy steps to do it yourself
1- Program remote once received (Central locking will work now)
2- Take key to locksmith shop and get them to cut your key to code
3- Program transponder chip (this will now start car)

Remote Programming Procedure – Do it yourself
1. Open Driver side door
2. Put the Original key in and out of ignition 2 times
3. Close and open driver door 2 times
4. Put Original Key in and out of ignition once
5. Shut and open door twice
6. Close door
7. Insert key Turn ignition on
8. Turn ignition off and remove key
9. Door locks will cycle
10. Press lock and unlock together for 1 second then lock button
(To delete remotes turn the key on and off 5 times, door locks will cycle 5 times. Turn the key on then off. Open shut door)
11. Locks will cycle put key in ignition turn to on then off
12. Remove key from ignition, close door and test remote

Transponder chip programming- do it yourself
1. Put Original master key in and out of ignition 5 times. Finish with key in ignition
2. Open and shut door 6 times
3. Remove original, insert new key
4. Leave for 60 seconds (or till Security light goes out on dashboard)
5. After 60 seconds security light stops flashing then you can start car.
6. Take key out
7. Open and shut door

Compatible Vehicles
