Feature:
If your cylinder is damaged, experiencing low compression, or even a piston seizure, this kit is the ideal solution.
The kit comprises a cylinder, piston, rings, pin, clips, and a top-end gasket kit, delivering exactly what you see in the picture.
The piston is anodized, ensuring exceptional heat resistance and a longer lifespan.
High-performance materials are used for the gaskets, enhancing durability and reliability.
All the gaskets needed to rebuild the top end are included.
Designed for standard bore size: 76mm with a 17mm steel piston pin.
An excellent, cost-effective replacement option for addressing issues with the original cylinder.

Specification:
Type: Top End Rebuild Kit
Material: Aluminum
Displacement: 286cc
Bore Type: Standard Bore
Bore Size: STD 76mm
Stroke: 63mm
Pin Diameter: 17mm
Replacement OEM Number:
Cylinder: 12100-K33-D00
Cylinder Base Gasket: 12191-KYJ-900
Cylinder Head Gasket: 12251-KYJ-901
Piston (Std): 13101-K33-D00
Pin, Piston: 13111-MEL-000
Piston Ring Set (Std): 13010-KYJ-305
Circlips, piston: 13112-K33-D00
Tensioner Gasket: 14560-KGH-900

Compatible with:
Suitable For Honda CBR300R 2015-2022
Suitable For Honda CBR300RA ABS 2015-2022
Suitable For Honda CB300F 2017-2018
Suitable For Honda CB300FA 2017-2018
Suitable For Honda CB300R (CBF300N) 2019-2022
Suitable For Honda CMX300 Rebel 300 2017-2022
Suitable For Honda CMX300A Rebel 300 ABS 2017-2022
(Compatibility Chart is Provided for Reference ONLY!)
(Please Verify Fitment by Comparing with Your Faulty Unit and the Image We Have Provided)

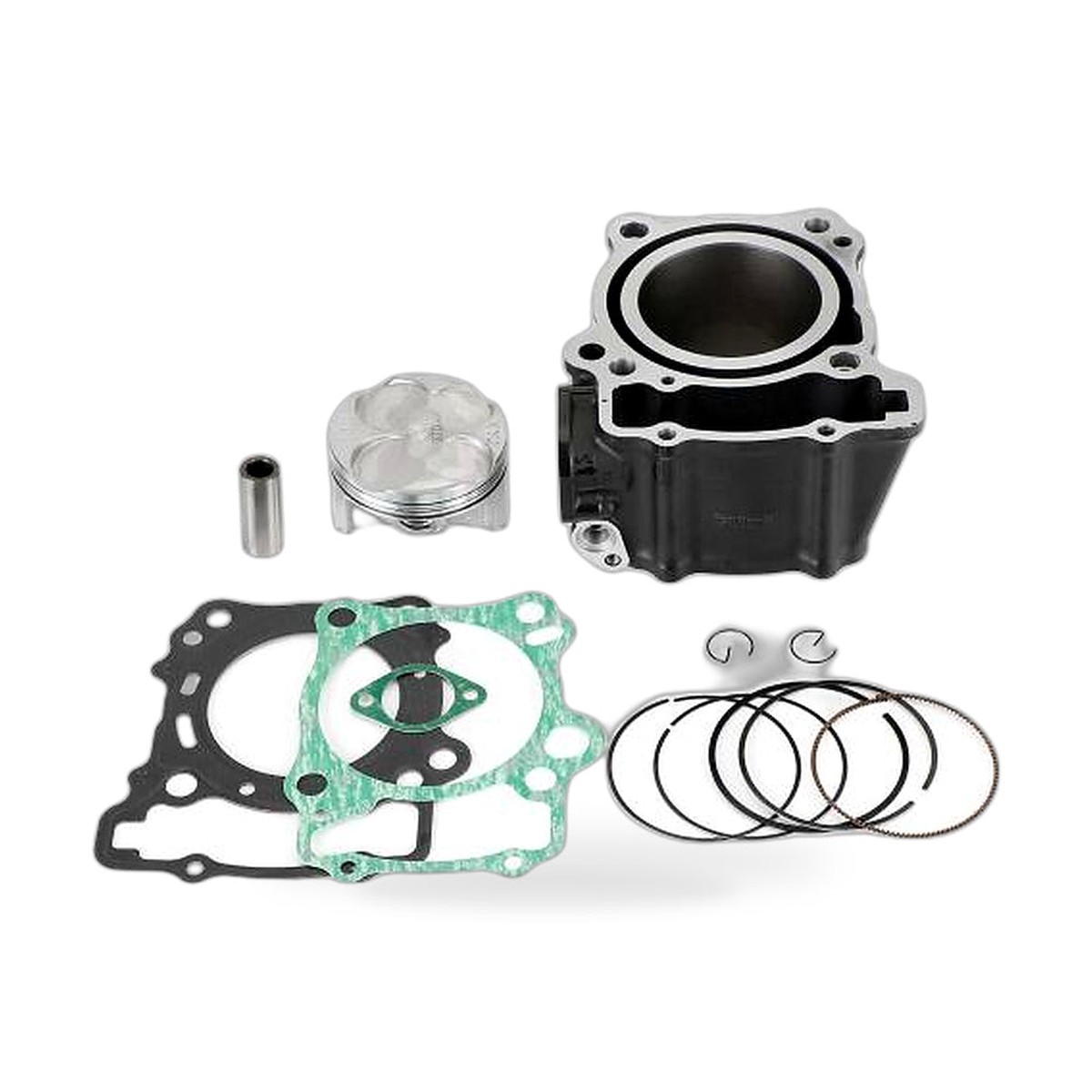

Package Including:
1x Cylinder
1x Piston(STD)
1 Set Piston Ring
1x Wristpin
2x Circlip
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket
