Description

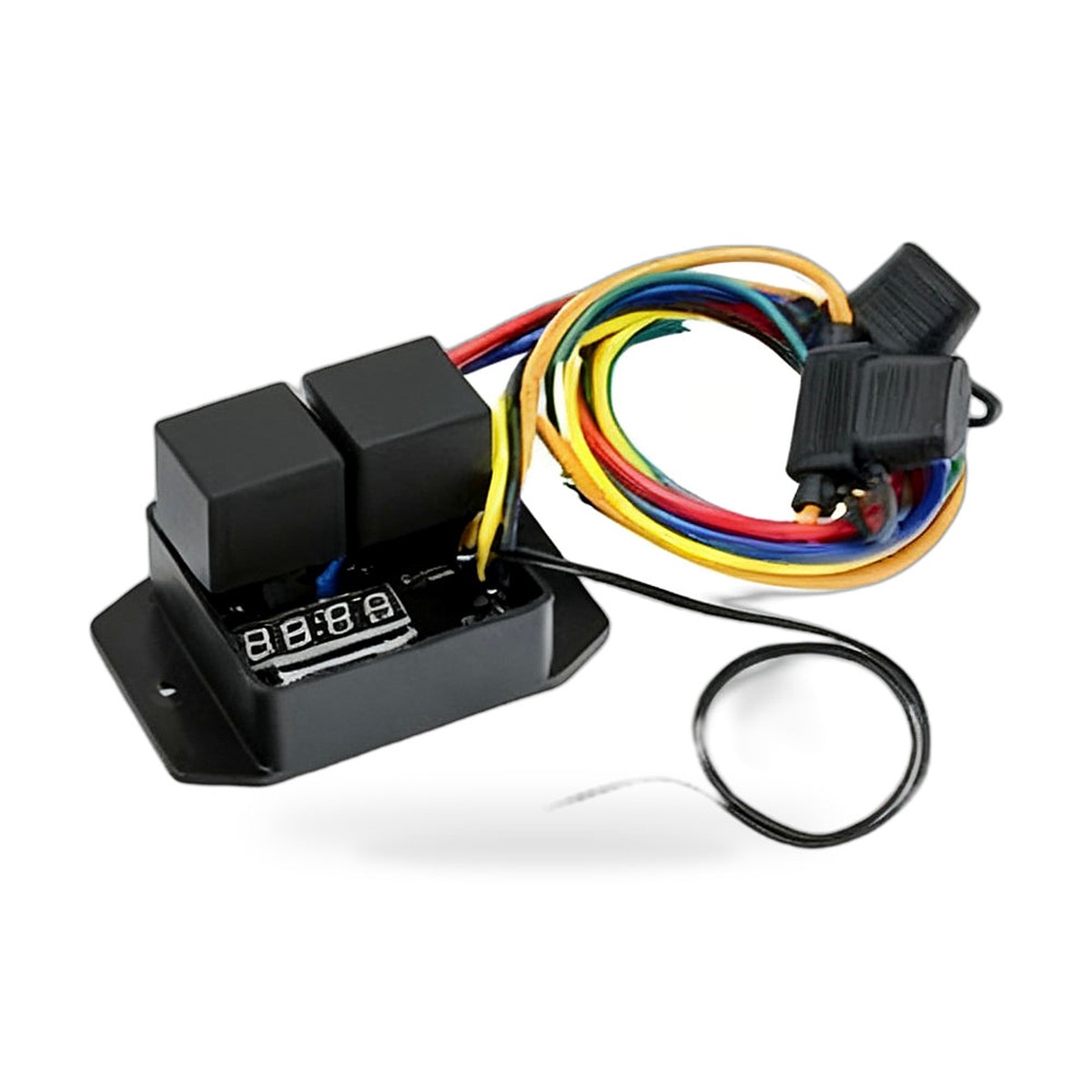

A single-speed digital thermo fan controller compatible with Radiator Cooling 0444 (size: 956556mm). Designed for single or dual fan applications. Includes digital temperature display and dual 40A relay control.

Features

Dual 40A relays with 10-second delay for second fan start
LED display showing actual and set temperatures in C/F
Simple push-button configuration; 40110C (104230F) temp range
142cm sensor wire for easy installation
Includes 230A fuses for safety

Specifications

Type: Thermo Fan Switch
Warranty: 1 Year
Voltage: 1227V (24V use requires relay replacement)
Current: Rated 30A / Max 40A per fan
Relay Setup: Dual relays
Sensor Wire: 142cm (112cm + 30cm probe)
Speed: Single speed with 10s delay for 2nd fan
Display: LED digital (actual + set temp)
Temperature Range: 40110C (104230F)
Adjustment: Push-button
Control Unit: Pre-programmed microcontroller
Outputs: Batt+, Batt-, IGN, AC Clutch, Fan #1, Fan #2, Probe
Dimensions: 95mm x 65mm x 56mm
Reference Number: Suitable for 0444

Compatible With

Suitable for Radiator Cooling 0444

Package Includes

1x Digital Thermo Fan Controller Switch
2x 40A Relays
2x 30A Fuses
1x 142cm Temperature Sensor Wire

Note

All parts are aftermarket replacements. While compatible with the listed models, they are not manufactured or endorsed by the original equipment manufacturer (OEM).
All trademarks and brand names are used for identification purposes only and remain the property of their respective owners.
