Description:

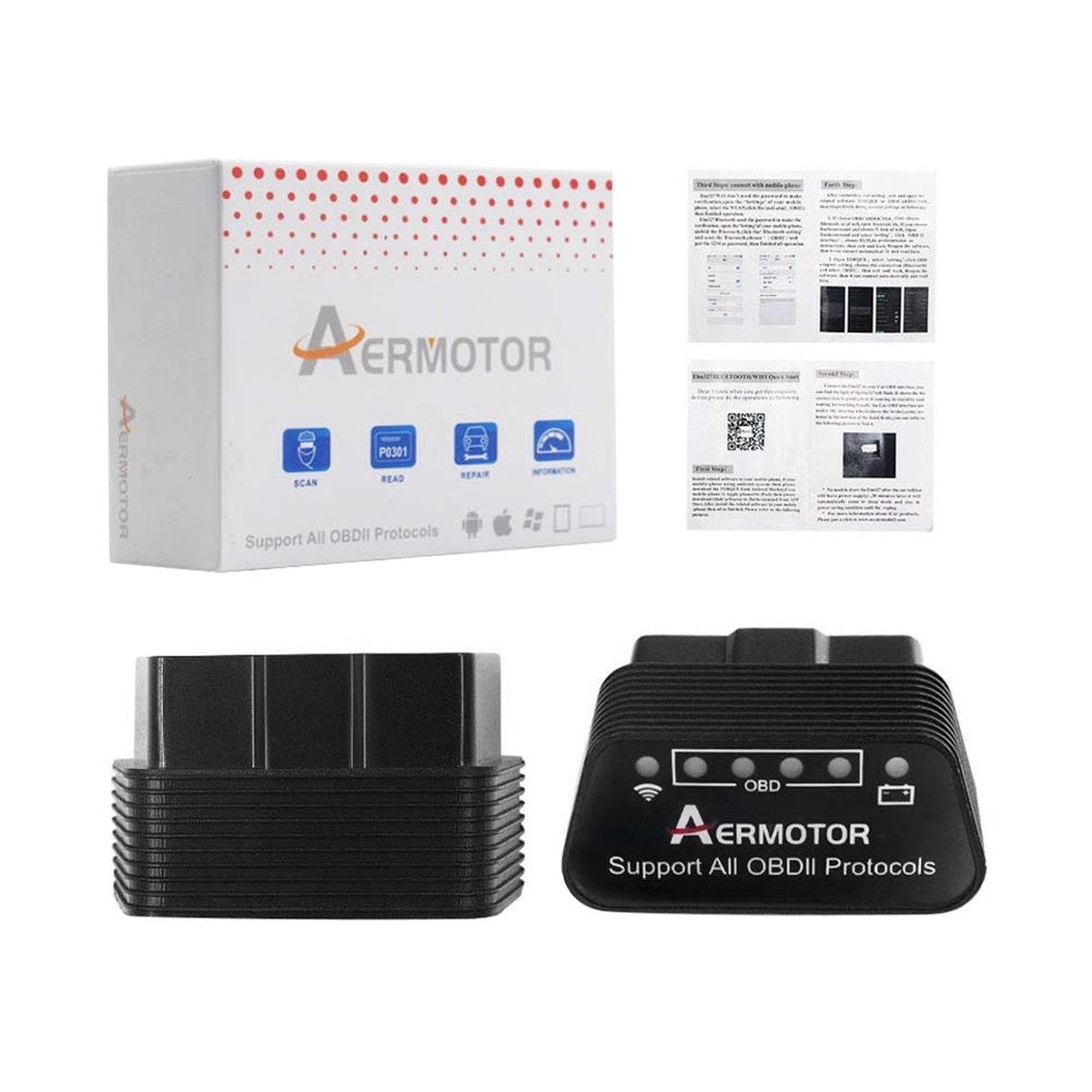

Car Diagnostic-Tool Scanner Aermotor ELM327 Wifi Auto Diagnostic Scanner Compatible with Android IOS Car Error Code Reader. The diagnostic scanner supports all OBD-II self-diagnostic systems and their compatible communication protocol detection. Through the link with the car, relevant data such as engine speed, coolant temperature, fuel system status, vehicle speed, short-term fuel correction, long-term fuel correction, throttle opening, and car fault codes can be reflected to the mobile phone via BT. It is a very strong and convenient diagnostic tool for mobile devices such as computers.

Feature:
Supports all OBD-II self-diagnostic systems and their compatible communication protocol detection.
Read general and auto manufacturer specific diagnostic trouble codes and display their definitions (software contains more than 3,000 fault codes).
Clear the fault code and turn off the engine fault alarm indicator.
Read engine real-time dynamic data flow.
Compatible with Android.

Specification:
Type: WIFI, V1.5
Color: Black
Material: Automotive grade plastics
Operating Temperature: -40 to 85 C
SSID: WiFi_OBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Energy Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g

The program lets you perform the following operations:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL (“Check Engine” light)
3. Display current sensor data, including Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure and more.

Compatible Software:
Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN
Android: Torque, DashCommand, EO-BD
iOS: OBD Car Doctor, DashCommand, EO-BD
Symbian: OBDScope
Support System: Windows XP, Windows 7/8, Android, iOS, Symbian

Supported OBD-II Protocol:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (quick init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Package Including:
1 x Diagnostic Scanner
1 x User Manual
1 x Package Box
