Product Overview:

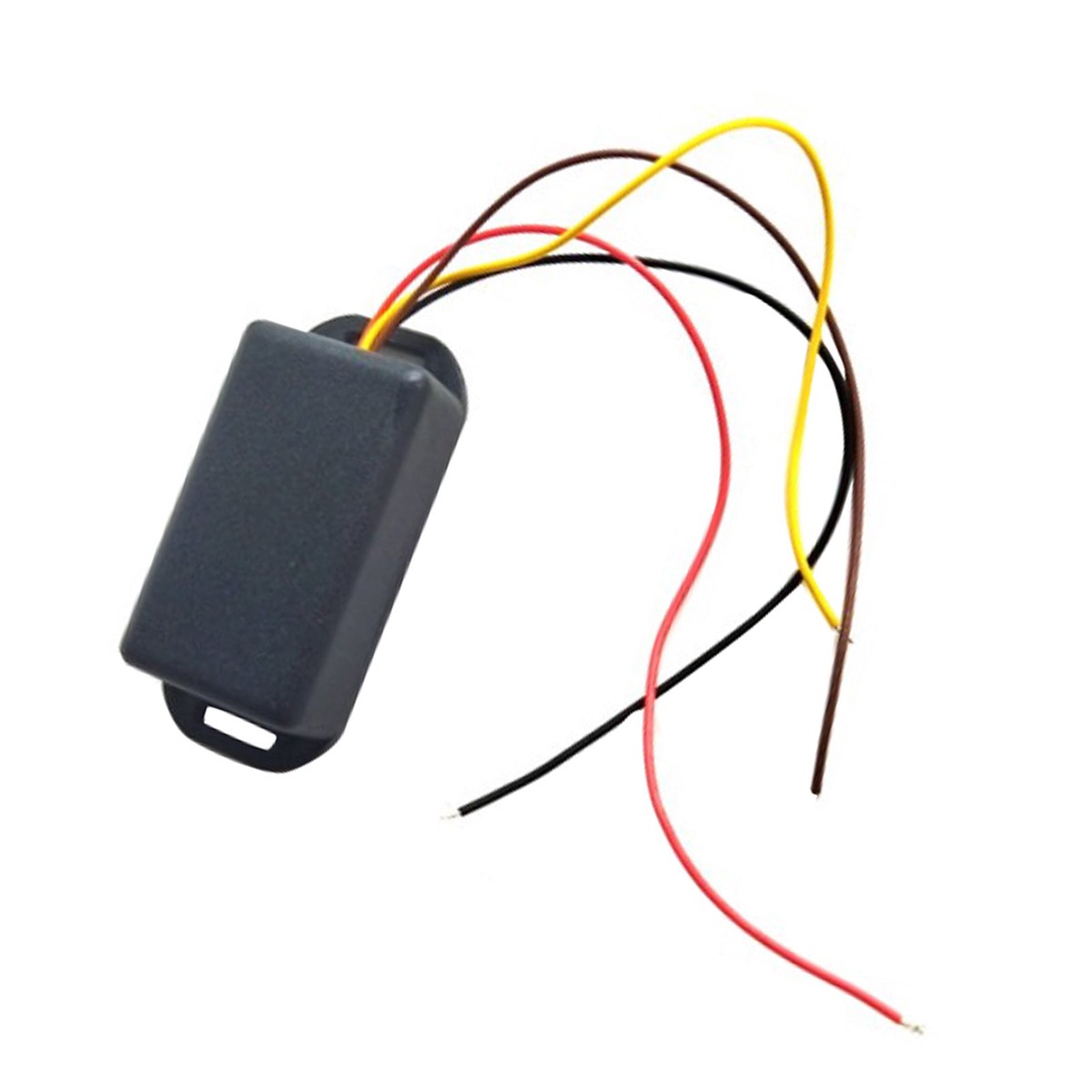

The FM102 Fuel Gauge Interface Module is a versatile solution for integrating any fuel sender with fuel gauges. It converts input voltage signals (0-5V) into programmable resistance signals, ensuring accurate fuel gauge readings and correcting common issues like OHM mismatch and erratic movement caused by fuel slosh. This compact module allows for custom calibration of fuel gauge levels (Full, Half, Empty) and can be directly connected to ultrasonic oil sensors for precise fuel level reporting.

Note: FM102input signal from fuel sensorOhmoutput signal to fuel gaugeOhm Resistance

Compatible with:

Suitable for any fuel sender and fuel gauge that uses 0-5V signals.

Features:

Connects fuel senders and fuel gauges for accurate readings

Corrects OHM mismatch and prevents erratic movement caused by fuel slosh

Customizable calibration for Full, Half, and Empty fuel levels

Provides linear calculation for in-between fuel levels between Full, Half, and Empty

Specifications:

Input Signal: 0-5V voltage

Output to Fuel Gauge: Programmable resistance

Material: Plastic

Installation: Mount in a clean, dry, and cool position

Type: Fuel Gauge Interface Module

Warranty: 1 year

Package Includes:

1 x FM102 Fuel Gauge Interface Module

Additional Notes:

Please verify the part’s fitment with your vehicle before purchase. Compatibility may vary depending on the vehicle’s year, model, and series. Double-check photos and part numbers to ensure proper fitment.
