Specifications

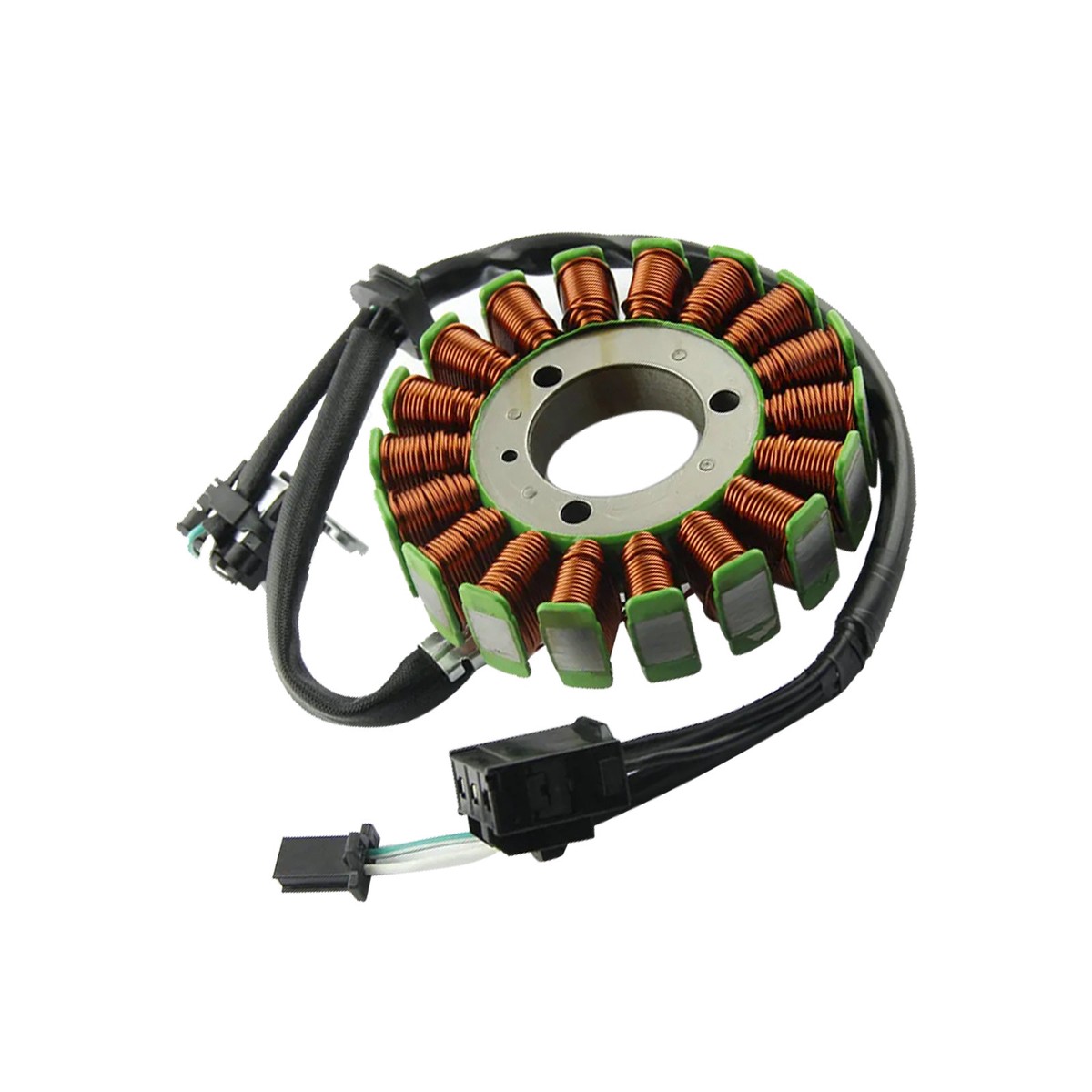

Product Name: Magneto Stator Pick Up Coil
Reference Number: Suitable for 21003-0128
Interior Diameter: 38mm / 1.49″
Exterior Diameter: 107mm / 4.22″
Thickness: 12mm / 0.46″
Number of Wires: 5
Number of Pins: 5
Number of Plugs: 2
Number of Fixation Holes: 3

Compatible with:
Suitable For Kawasaki EX250 (ABS) Ninja 250 2013-2017
Suitable For Kawasaki EX250 Ninja 250R 2013-2017
Suitable For Kawasaki EX300 Ninja 300 2013-2017
Suitable For Kawasaki EX300 Ninja 300 ABS 2013-2017
Suitable For Kawasaki ER250 Z250 2013-2014
Suitable For Kawasaki ER250 Z250 ABS 2015-2017
Suitable For Kawasaki ER300 Z300 2015-2016
Suitable For Kawasaki ER300 Z300 ABS 2015-2016

Note:
Before installing your new stator, check the AC output, replace any damaged connectors, and inspect wiring.
Use hi-temp dielectric grease on all connectors.
Wire colors may differ from the original, but they are correctly configured.
Always use locking compound when bolting the stator.
Ensure correct air gap for stator with pickup coil.

Package include:
1x Magneto Stator Pick Up Coil
