Compatible With:

Suitable For Honda GX240 – GX390 range

Suitable For most 9hp to 13hp clone engines with 25mm diameter and 60mm long output shafts, also known as the L type PTO shaft option

Features:

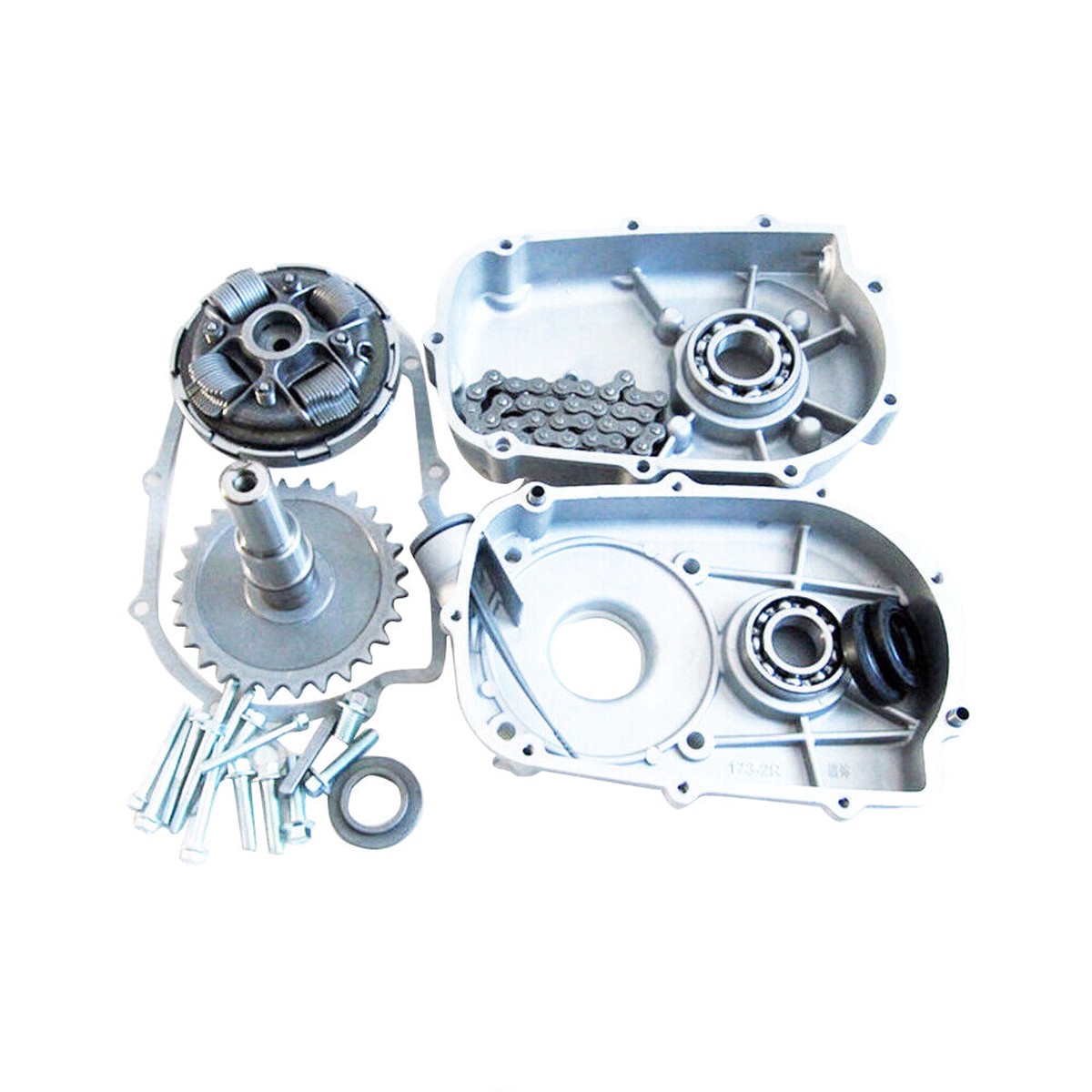

These replacement clutch boxes come as complete units and are ready to be fitted to your engine.

Requires a 60mm long, 25mm diameter crankshaft input, output is to a 22mm shaft, also known as the R type PTO shaft.

Ready to assemble, they give incredible torque at lower engine speeds, and are ideal replacements on go-karts, mixers, pumps etc.

This is a carefully selected replacement part of the highest quality, and also at an affordable price too.

Specification:

Fitment Type: Direct Replacement

Type: 2:1 Reduction Wet Clutch Gearbox

Input Shaft: 25mm Diameter, 60mm Length

Input Shaft Keyway: 7mm

Input Mounting Holes: 90mm Square

Output Shaft: 22mm Diameter, 50mm Length

Output Shaft Keyway: 7mm

Output Mounting Holes: 70mm Square

Package Included:

1 x 2:1 Reduction Wet Clutch Gearbox

Note:

The gearbox is supplied without oil, and requires oil before use.

This is typically the same as you would use in the engine sump i.e an SAE30 4-stroke small engine oil.

Note:

*Sourced From Professional Aftermarket Manufacturer, QUALITY GUARANTEED.*
