Specifications:
Type: Stator + Regulator Rectifier + Gasket
Machine Type: Dual Sport Motorcycle, Road Motorcycle
Quantity: 1 Kit
Warranty: 1 Year

For Stator:
Number of plugs: 2
Number of wires: 7
Number of pins: 3 + 4
Number of poles: 18
Interior diameter: 34 mm
Exterior diameter: 93 mm
Pick-up pulsar coil included

For Regulator:
Number of wires: 5
Number of plugs: 2
Number of pins: 3 + 2

Replacement Part Number:
For Suzuki:
Stator Assy: Suitable for 32101-29F00, 32101-29F10, 32101-29F11
Rectifier, regulator: Suitable for 32800-29F00
Gasket, generator cover: Suitable for 11483-29F00
For Kawasaki:
Stator Assy: Suitable for 21003-S007
Rectifier, regulator: Suitable for 21066-S005
Gasket, generator cover: Suitable for 11061-S085

Compatible With:
Suitable for Suzuki DRZ400 DR-Z400 2000-2004
Suitable for Suzuki DRZ400 DR-Z400E 2000-2007/2009
Suitable for Suzuki DRZ400 DR-Z400S 2000-2019
Suitable for Suzuki DRZ400 DR-Z400SM 2005-2019
Suitable for Kawasaki KLX400 KLX400R 2003-2004
Suitable for Kawasaki KLX400 KLX400SR 2003-2004

Package Includes:

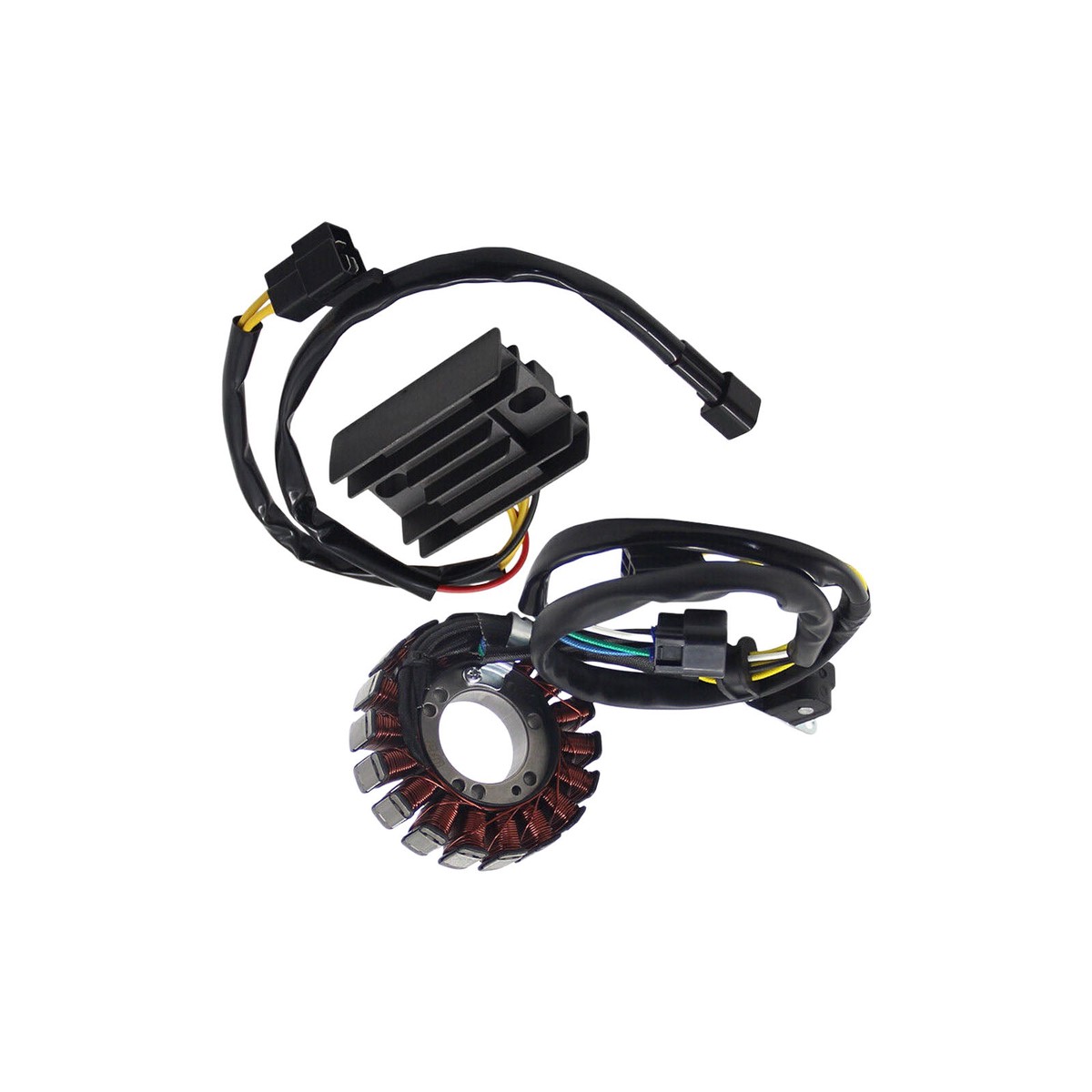

1 x Generator Stator
1 x Voltage Regulator
1 x Crankcase Gasket
