Description

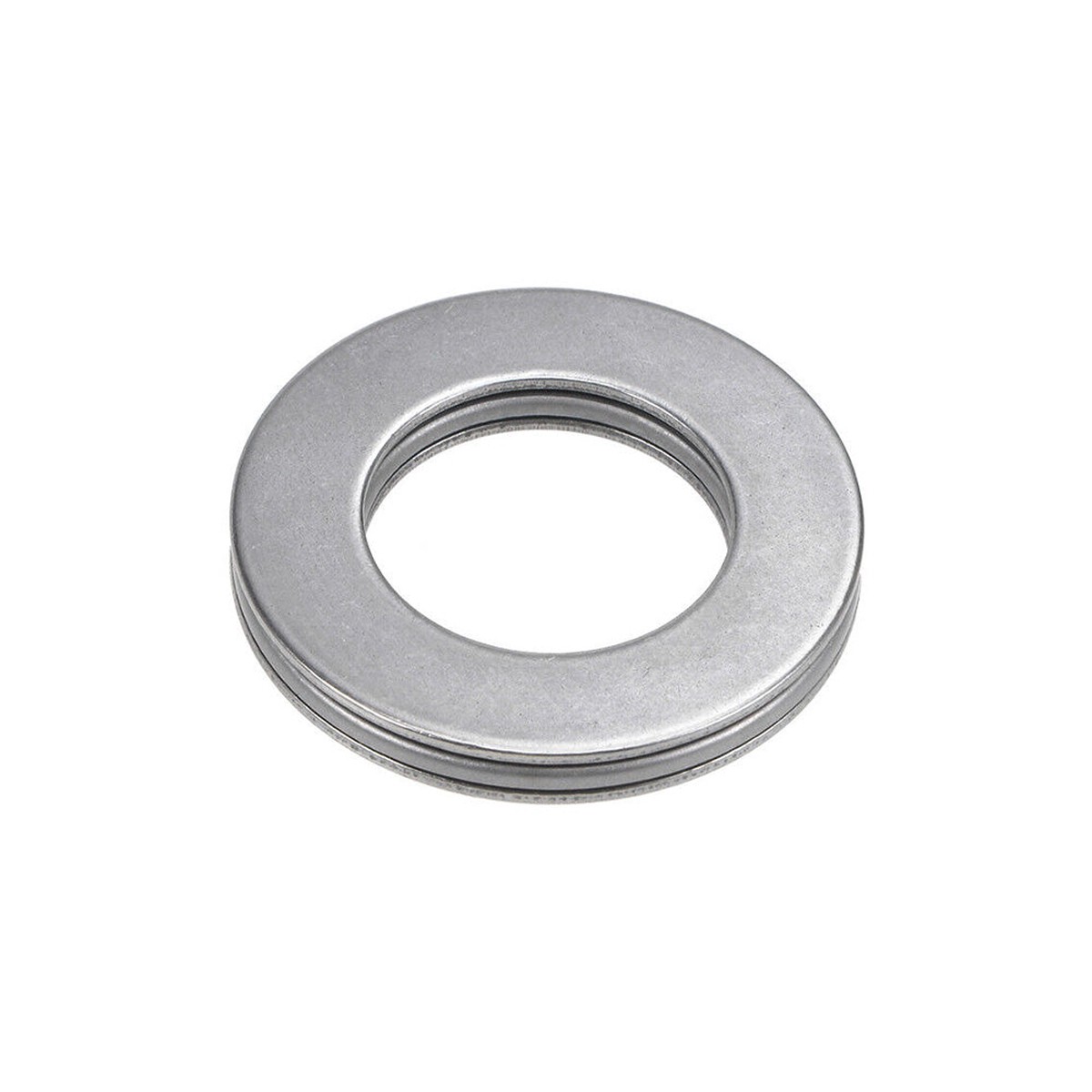

Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
These bearings accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.
Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.
Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

A set includes:
1pc of AXK2035 Bearings, and 2pcs of AS2035 Bearing Washers

Specifications
Type: Needle Roller Thrust Bearings
Bearing Model: AXK2035
Bearing Washer Model: AS2035
Needle Roller Material: Chromium Steel (GCr15)
Cage Material: ST13 Steel
Bearing Washer Material: 65Mn Spring Steel
Bore Diameter (d): 20mm
Outside Diameter (D): 35mm
Bearing Thickness (T1): 2mm
Washer Thickness (T2): 1mm (Approx.)
Dynamic Load Capacity (Cr): 12.9kN
Static Load Capacity (Cor): 45.6kN
Limiting Speed (Oil): 8500RPM

Package Contents:
10 x AXK2035 Bearings
20 x AS2035 Bearing Washers
